MB2011L Series

Catalog

SWITCH PUSHBUTTON SPDT 6A 125V

Part	Mechanical Life	Electrical Life	Circuit	Panel Cutout Dimensions [diameter]	Switch Function	Features	Mounting Type	Voltage Rating - AC	Actuator Type	Termination Style	Actuator Marking	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)	Type	Color - Actuator/Cap	Ingress Protection
NKK Switches MB2011LD1W01-CA	100000 Cycles	25000 Steps	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	125 V	Button Round	Solder Lug	No Marking	85 °C	-30 ░C	30 V	3 A 6 A	Standard	Black

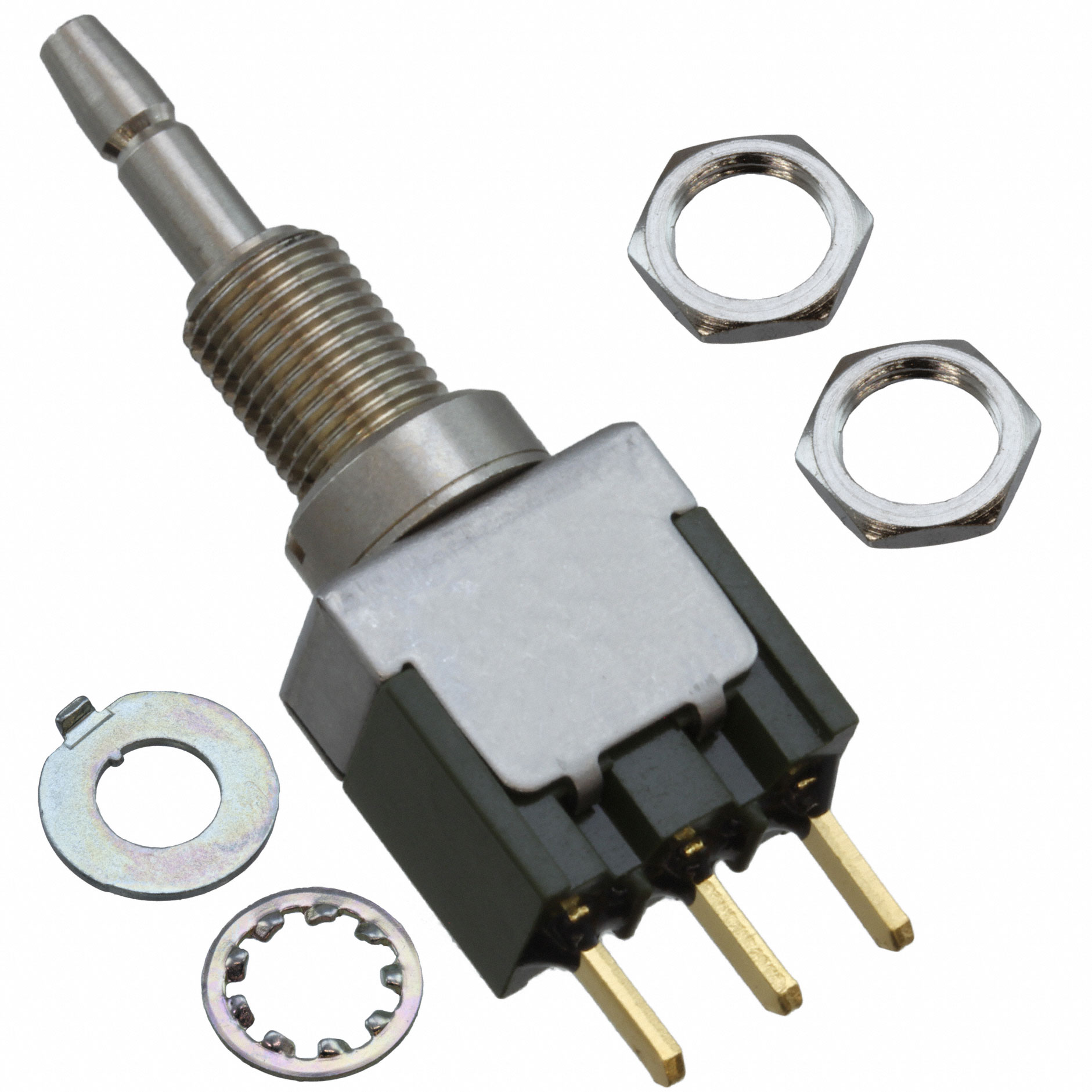

NKK Switches MB2011LS1G02	100000 Cycles	50000 Cycles	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	28 V	Plunger for Cap	Quick Connect - 0.062" (1.5mm)	No Marking	85 °C	-30 ░C	28 V	0.4 VA	Standard
NKK Switches MB2011LS1A05-CA	100000 Cycles	25000 Steps	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	125 V	Button Round	Wire Wrap	No Marking	85 °C	-30 ░C	30 V	3 A 6 A	Standard	Black

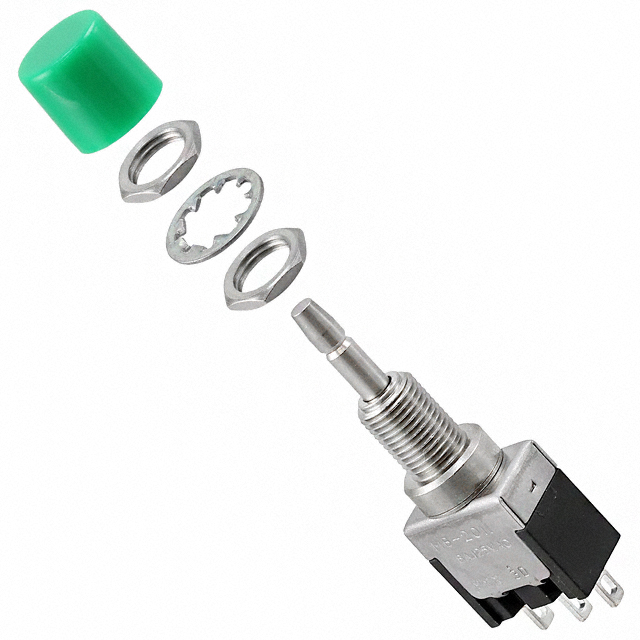

NKK Switches MB2011LS1W01-BF	100000 Cycles	25000 Steps	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	125 V	Button Round	Solder Lug	No Marking	85 °C	-30 ░C	30 V	3 A 6 A	Standard	Green
NKK Switches MB2011LD3W01-CH	50000 Cycles	25000 Steps	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	125 V	Button Round	Solder Lug	No Marking	85 °C	-30 ░C	30 V	3 A 6 A	Standard		IP67 - Dust Tight Waterproof
NKK Switches MB2011LS1A01-CC	100000 Cycles	25000 Steps	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	125 V	Button Round	Solder Lug	No Marking	85 °C	-30 ░C	30 V	3 A 6 A	Standard	Red
NKK Switches MB2011LD1G01-BA	100000 Cycles	50000 Cycles	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	28 V	Button Round	Solder Lug	No Marking	85 °C	-30 ░C	28 V	0.4 VA	Standard	Black
NKK Switches MB2011LS1G01-BC	100000 Cycles	50000 Cycles	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	28 V	Button Round	Solder Lug	No Marking	85 °C	-30 ░C	28 V	0.4 VA	Standard	Red

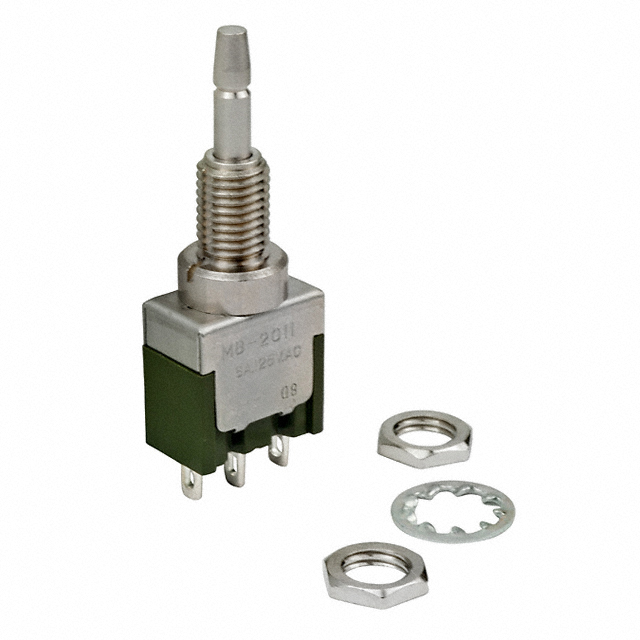

NKK Switches MB2011LS4W01	100000 Cycles	25000 Steps	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	125 V	Plunger for Cap	Solder Lug	No Marking	85 °C	-30 ░C	30 V	3 A 6 A	Standard

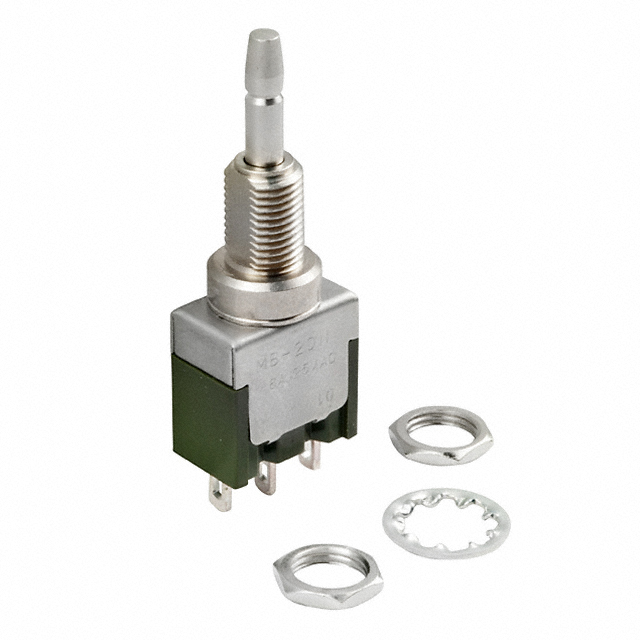

NKK Switches MB2011LD1W01	100000 Cycles	25000 Steps	SPDT	6.5 mm	On-Mom	Epoxy Sealed Terminals	Panel Mount Rear	125 V	Plunger for Cap	Solder Lug	No Marking	85 °C	-30 ░C	30 V	3 A 6 A	Standard
