CLU04Q Series

Catalog

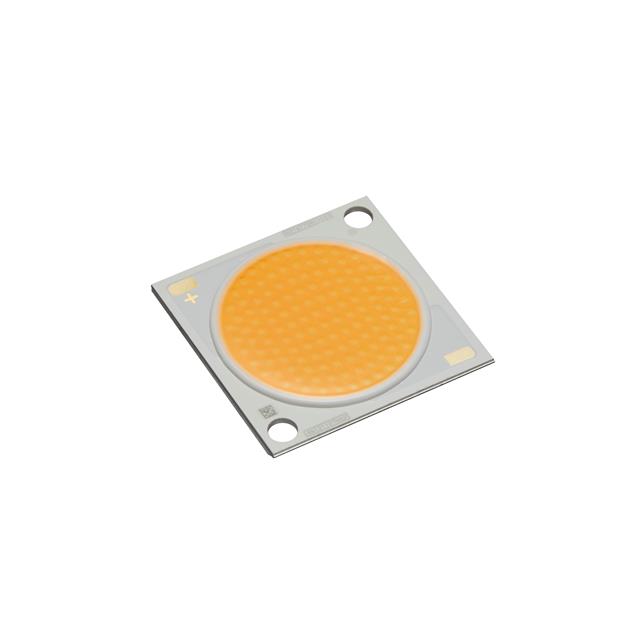

LED COB CLU04Q NEUT WHT SQ 4000K

Part	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Features	Temperature - Test	Voltage - Forward (Vf) (Typ)	Color	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Luminous Flux @ Current/Temperature	Configuration	CCT (K)	CCT (K)	Lens Type	Height [z]	Type	Current - Max [Max]	Light Emitting Surface (LES) [diameter]
Citizen Finedevice Co Ltd CLU04Q-1812E1-402H5X3	90	147 lm/W	With Connector	85 °C	50.7 V	Neutral White	28 mm	28 mm	1.08 A	8654 lm	Square	4000 K	2-Step MacAdam Ellipse	Flat	1.4 mm	Chip On Board (COB)	2.76 A	22 mm
Citizen Finedevice Co Ltd CLU04Q-1212E1-352M2X2	80	165 lm/W	With Connector	85 °C	33.8 V	Warm White	28 mm	28 mm	1.08 A	6493 lm	Square	3500 K		Flat	1.4 mm	Chip On Board (COB)	2.76 A	22 mm
Citizen Finedevice Co Ltd CLU04Q-1812E1-352H5X3	90	141 lm/W	With Connector	85 °C	50.7 V	Warm White	28 mm	28 mm	1.08 A	8319 lm	Square	3500 K		Flat	1.4 mm	Chip On Board (COB)	2.76 A	22 mm
Citizen Finedevice Co Ltd CLU04Q-1211E1-302H5X3	90	142 lm/W	With Connector	85 °C	33.8 V	Warm White	28 mm	28 mm	990 mA	5116 lm	Square	3000 K		Flat	1.4 mm	Chip On Board (COB)	2.53 A	22 mm
Citizen Finedevice Co Ltd CLU04Q-1812E1-652M2X2	80	161 lm/W	With Connector	85 °C	50.7 V	Cool White	28 mm	28 mm	1.08 A	9478 lm	Square	6500 K		Flat	1.4 mm	Chip On Board (COB)	2.76 A	22 mm
Citizen Finedevice Co Ltd CLU04Q-1212E1-272H7X5	97	118 lm/W	With Connector	85 °C	33.8 V	Warm White	28 mm	28 mm	1.08 A	4643 lm	Square	2700 K	2-Step MacAdam Ellipse	Flat	1.4 mm	Chip On Board (COB)	2.76 A	22 mm
