CR1102H Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Switch Function	Mounting Type	Contact Rating @ Voltage	Circuit	Actuator Type	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Termination Style	Operating Force	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]

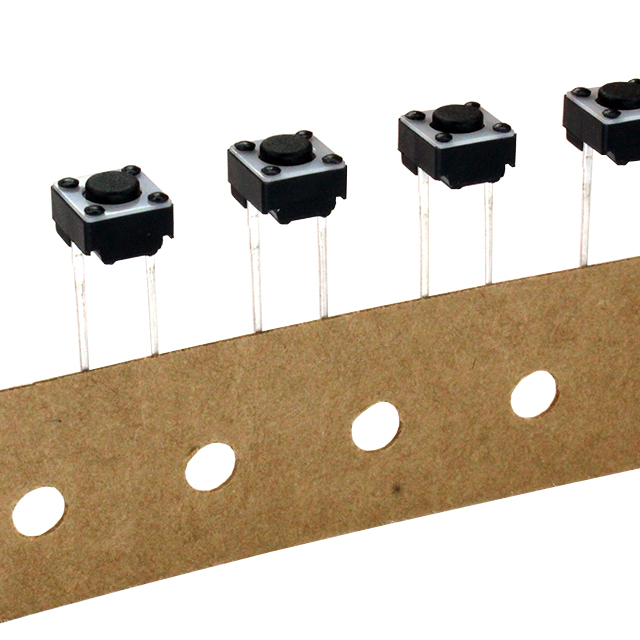

CIT Relay and Switch CR1102H4.3F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	260 gf	6.2 mm	6.2 mm	4.3 mm

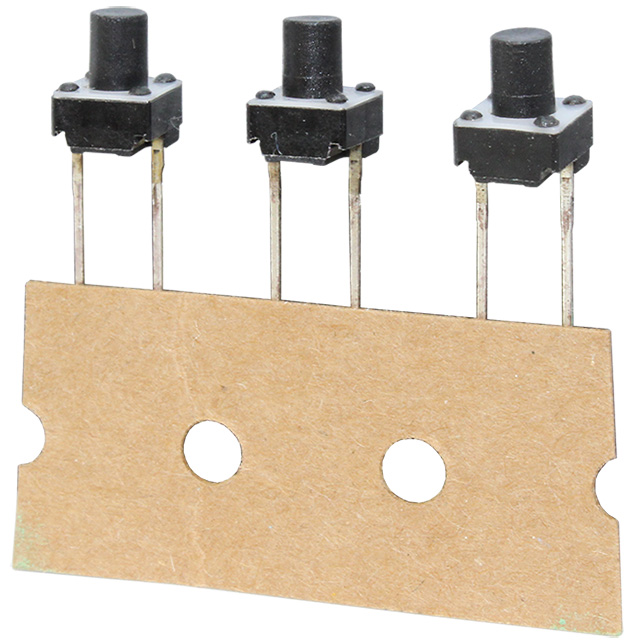

CIT Relay and Switch CR1102H9.5F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	260 gf	6.2 mm	6.2 mm	9.5 mm

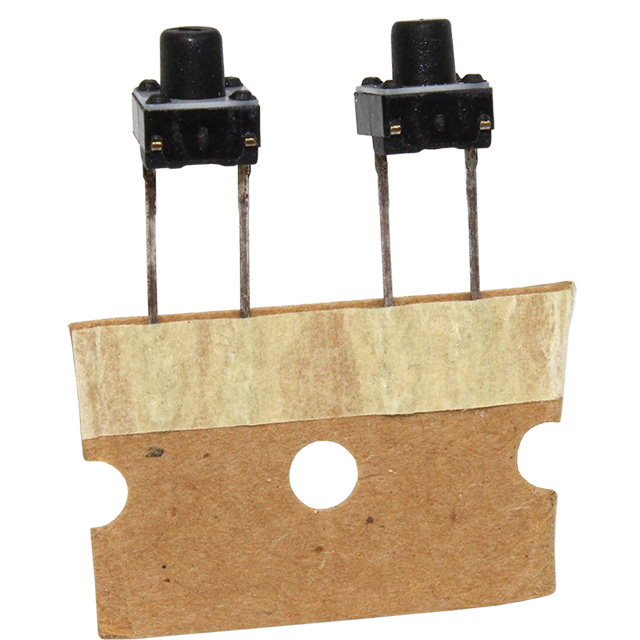

CIT Relay and Switch CR1102H7.0F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	100 gf	6.2 mm	6.2 mm	7 mm
CIT Relay and Switch CR1102H9.5F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	100 gf	6.2 mm	6.2 mm	9.5 mm

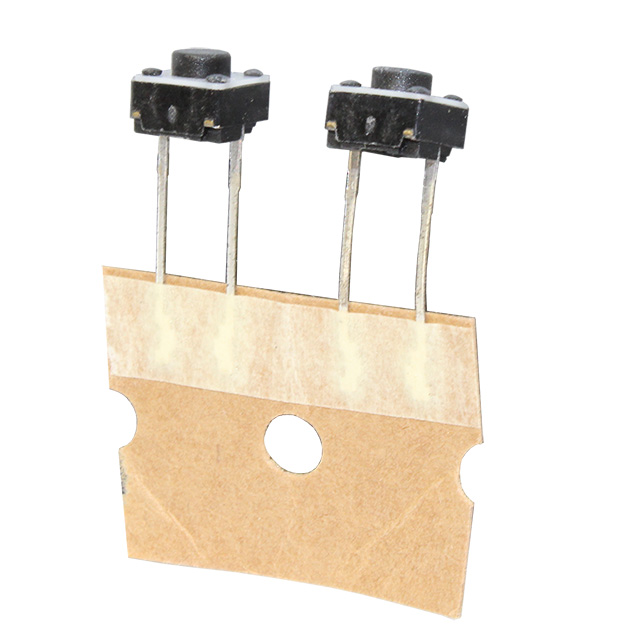

CIT Relay and Switch CR1102H5.0F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	100 gf	6.2 mm	6.2 mm	5 mm
CIT Relay and Switch CR1102H7.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	160 gf	6.2 mm	6.2 mm	7 mm
CIT Relay and Switch CR1102H4.3F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	100 gf	6.2 mm	6.2 mm	4.3 mm
CIT Relay and Switch CR1102H9.5F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	160 gf	6.2 mm	6.2 mm	9.5 mm

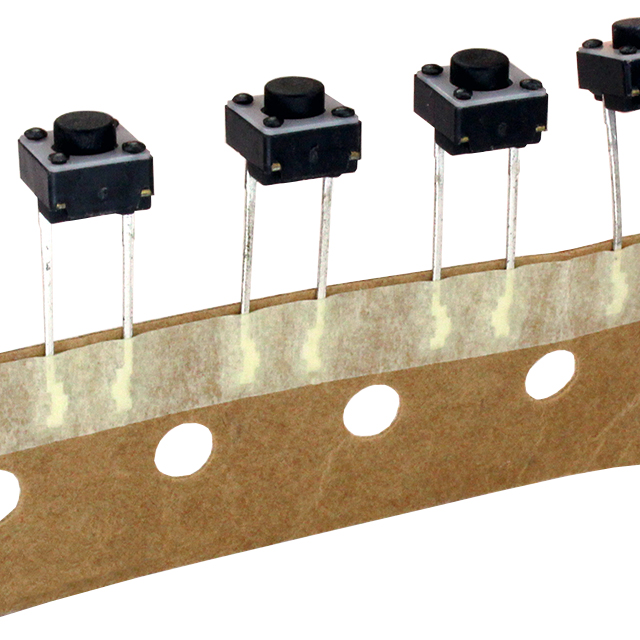

CIT Relay and Switch CR1102H5.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	160 gf	6.2 mm	6.2 mm	5 mm

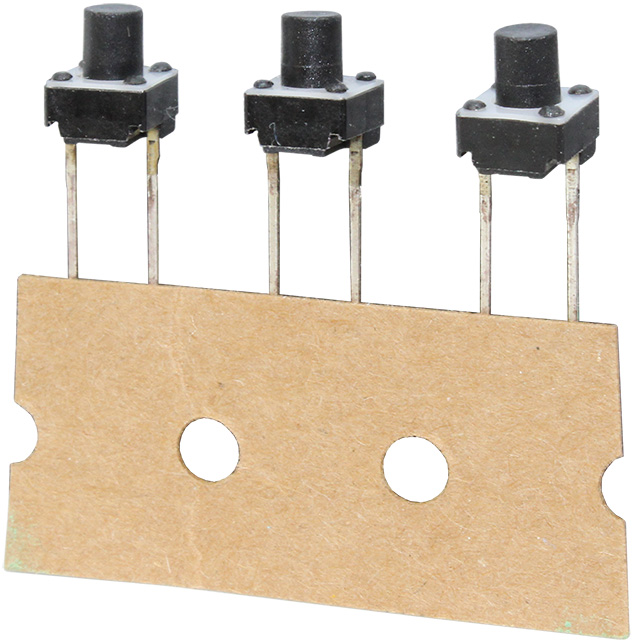

CIT Relay and Switch CR1102H7.3F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Off-Mom	Through Hole	0.05 A 50 VDC	SPST-NO	Standard	Top Actuated	85 °C	-40 C	Non-Illuminated	PC Pin	260 gf	6.2 mm	6.2 mm	7.3 mm
