T1900N Series

Manufacturer: INFINEON

Catalog

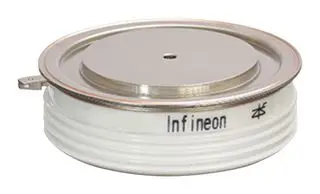

THE T1900N18TOF VT IS A 1800 V 1810 A PHASE CONTROL THYRISTOR DISC

Part	Voltage - Gate Trigger (Vgt) (Max) [Max] [custom]	Structure	Operating Temperature	Package / Case	Current - On State (It (RMS)) (Max)	Current - Hold (Ih) (Max) [Max]	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Number of SCRs, Diodes	Current - On State (It (AV)) (Max) [Max]	Voltage - Off State	Current - Non Rep. Surge 50, 60Hz (Itsm)
INFINEON T1900N18TOFVTXPSA1	2 V	Single	135 °C	TO-200AC	2840 A	500 mA	Clamp On	250 mA	1 SCR	1810 A	1.8 kV	39000 A
INFINEON T1900N16TOFVTXPSA1	2 V	Single	135 °C	TO-200AC	2840 A	500 mA	Clamp On	250 mA	1 SCR	1810 A	1.8 kV	39000 A
