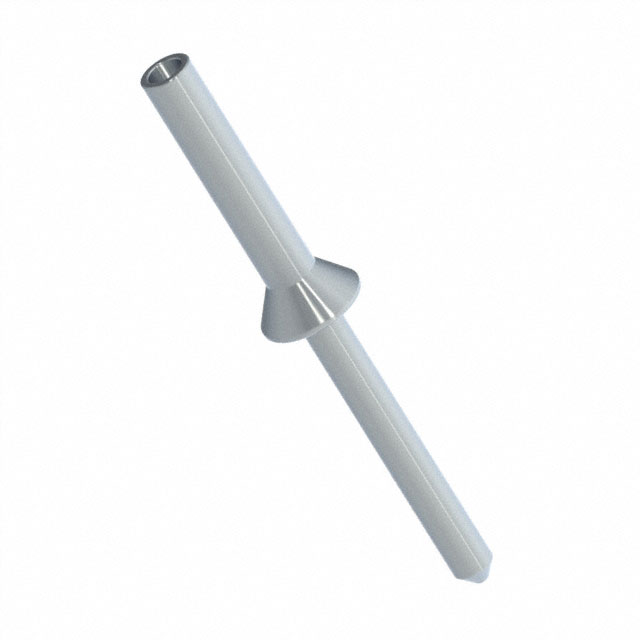

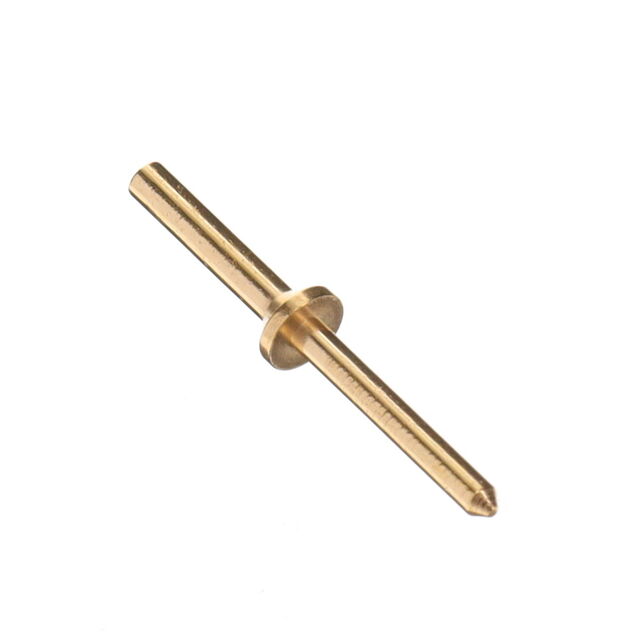

3117-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .024DIA GOLD
| Part | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Insulation | Termination | Contact Finish | Length - Above Flange [x] | Length - Above Flange [x] | Board Thickness | Board Thickness | Terminal Style | Contact Material | Length - Overall [x] | Length - Overall [x] | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | 20 µin | 0.51 µm | Non-Insulated | Swage | Gold | 4.78 mm | 0.188 in | 3.18 mm | 0.125 " | Single End | Brass Alloy | 9 mm | 0.354 in | 3.58 mm | 0.141 " | 0.06 in | 1.52 mm | PC Pin | 0.89 mm | 0.035 in |
 Mill-Max Manufacturing Corp. | Through Hole | 10 Áin | 0.25 Ám | Non-Insulated | Swage | Gold | 4.78 mm | 0.188 in | 3.18 mm | 0.125 " | Single End | Brass Alloy | 9 mm | 0.354 in | 3.58 mm | 0.141 " | 0.06 in | 1.52 mm | PC Pin | 0.89 mm | 0.035 in |
 Mill-Max Manufacturing Corp. | Through Hole | 200 Áin | 5.08 Ám | Non-Insulated | Swage | Tin | 4.78 mm | 0.188 in | 3.18 mm | 0.125 " | Single End | Brass Alloy | 9 mm | 0.354 in | 3.58 mm | 0.141 " | 0.06 in | 1.52 mm | PC Pin | 0.89 mm | 0.035 in |
