1337406 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

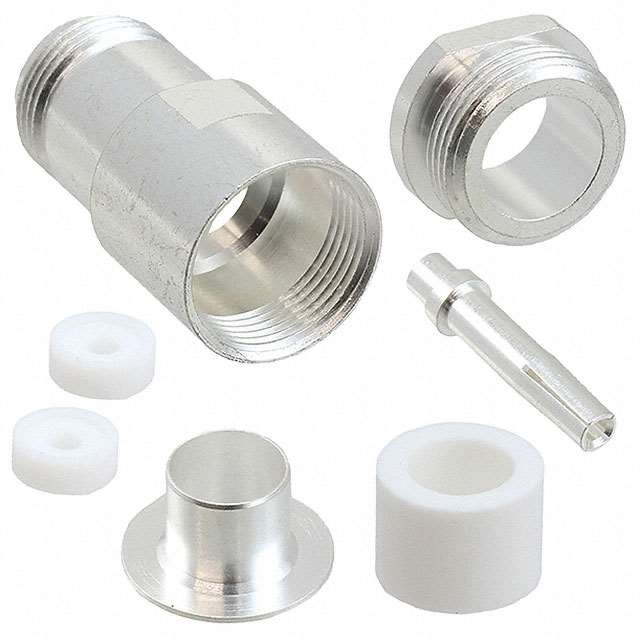

N STR JK PS 50OHM SILVER PLTD PSF 1/4M,
| Part | Body Material | Includes | Mating Cycles | Dielectric Material | Center Contact Plating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Shield Termination | Impedance | Housing Color | Center Contact Material | Mounting Type | Contact Termination | Frequency - Max [Max] | Connector Type | Fastening Type | Cable Group | Connector Style | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | 1 Clamp 1 Connector 1 Contact 1 Gasket 1 Sleeve 2 Insulators | 500 | Polytetrafluoroethylene (PTFE) | Silver | 1000 VDC | -65 ░C | 165 °C | Silver | Clamp | 50 Ohms | Silver | Phosphor Bronze | Free Hanging (In-Line) | Solder | 11 GHz | Female Socket Jack | Threaded | RG-8A 213 | N Type | 1 |
