Power Inductors - SMD 100uH 0.95A 0.2707ohms
Power Inductors - SMD 100uH 0.95A 0.2707ohms
| Part | Mounting Type | Material - Core | Type | Inductance | Inductance Frequency - Test | Height - Seated (Max) | Height - Seated (Max) [Max] | Package / Case | DC Resistance (DCR) [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Tolerance | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Current - Saturation (Isat) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

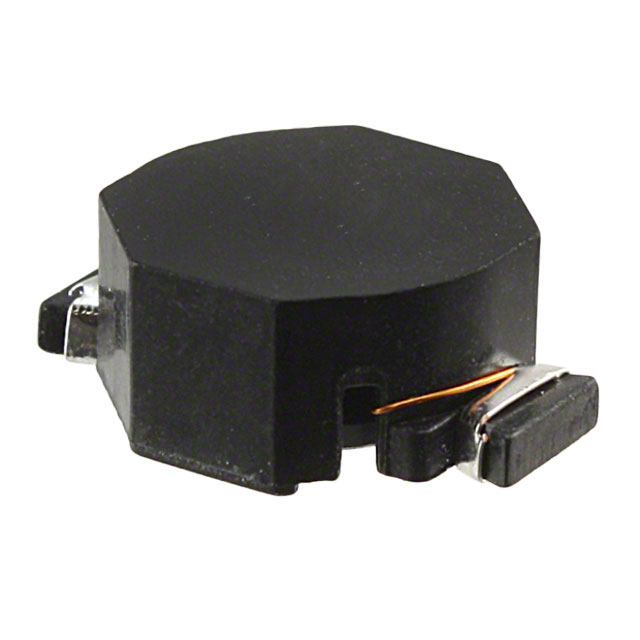

 Eaton - Electronics Division | Surface Mount | Ferrite | Drum Core Wirewound | 100 µH | 100 kHz | 6 mm | 0.236 " | Nonstandard | 270.7 mOhm | 10.41 mm | 0.41 " | 13.97 mm | 0.55 in | 20 % | 1.2 A | 85 °C | -40 C | Unshielded | 950 mA |
 Eaton - Electronics Division | Surface Mount | Ferrite | Drum Core Wirewound | 4.7 ÁH | 100 kHz | 6 mm | 0.236 " | Nonstandard | 16.5 mOhm | 10.41 mm | 0.41 " | 13.97 mm | 0.55 in | 20 % | 5.5 Amps | 85 °C | -40 C | Unshielded | 4.2 A |
