205957 Series

Manufacturer: Molex

Catalog

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER WITH POTTING CAPABILITY, SINGLE ROW, VERTICAL, SURFACE MOUNT, TIN-BISMUTH PLATING, POSITIVE LOCK, 10 CIRCUITS, WITH PICK-AND-PLACE TAPE, LOW-HALOGEN, BLACK

Part	Voltage Rating	Mounting Type	Insulation Height	Insulation Height	Insulation Material	Shrouding	Contact Type	Number of Positions Loaded	Termination	Number of Rows	Number of Positions	Contact Material	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Shape	Insulation Color	Contact Finish - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Connector Type	Features	Style	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]
Molex 2059571071	50 V	Surface Mount	5.23 mm	0.206 in	Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	10	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth	Varies by Wire Gauge	-40 C	105 ░C	Latch Holder	Tin-Bismuth	39.4 µin	1 µm	Header	Board Lock Solder Retention	Board to Cable/Wire
Molex 2059570971	50 V	Surface Mount	5.23 mm	0.206 in	Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	9	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth	Varies by Wire Gauge	-40 C	105 ░C	Latch Holder	Tin-Bismuth	39.4 µin	1 µm	Header	Board Lock Solder Retention	Board to Cable/Wire
Molex 2059571271	50 VAC	Surface Mount			Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	12	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth		-40 C	105 ░C	Latch Lock	Tin-Bismuth	39.4 µin	1 µm	Header	Board Guide Solder Retention	Board to Cable/Wire	3.6 A	0.181 in	4.6 mm
Molex 2059570571	50 V	Surface Mount	5.23 mm	0.206 in	Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	5	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth	Varies by Wire Gauge	-40 C	105 ░C	Latch Holder	Tin-Bismuth	39.4 µin	1 µm	Header	Board Lock Solder Retention	Board to Cable/Wire
Molex 2059570771	50 V	Surface Mount	5.23 mm	0.206 in	Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	7	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth	Varies by Wire Gauge	-40 C	105 ░C	Latch Holder	Tin-Bismuth	39.4 µin	1 µm	Header	Board Lock Solder Retention	Board to Cable/Wire
Molex 2059571171	50 VAC	Surface Mount			Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	11	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth		-40 C	105 ░C	Latch Lock	Tin-Bismuth	39.4 µin	1 µm	Header	Board Guide Solder Retention	Board to Cable/Wire	3.6 A	0.181 in	4.6 mm
Molex 2059570371	50 V	Surface Mount	5.23 mm	0.206 in	Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1		Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth	Varies by Wire Gauge	-40 C	105 ░C	Latch Holder	Tin-Bismuth	39.4 µin	1 µm	Header	Board Lock Solder Retention	Board to Cable/Wire

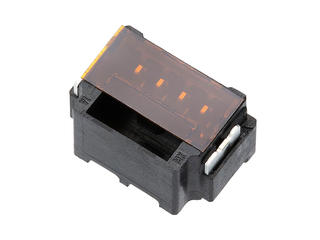

Molex 2059570871	50 V	Surface Mount	5.23 mm	0.206 in	Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	8	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth	Varies by Wire Gauge	-40 C	105 ░C	Latch Holder	Tin-Bismuth	39.4 µin	1 µm	Header	Board Lock Solder Retention	Board to Cable/Wire
Molex 2059571471	50 VAC	Surface Mount			Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	14	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth		-40 C	105 ░C	Latch Holder	Tin-Bismuth	39.4 µin	1 µm	Header	Pick and Place Solder Retention	Board to Cable/Wire	3.6 A	0.181 in	4.6 mm
Molex 2059571671	50 VAC	Surface Mount			Glass Filled Nylon Polyamide (PA)	Shrouded - 4 Wall	Male Pin	All	Solder	1	16	Brass	0.049 in	1.25 mm	UL94 V-0	Square	Black	Tin-Bismuth		-40 C	105 ░C	Latch Lock	Tin-Bismuth	39.4 µin	1 µm	Header	Board Guide Solder Retention	Board to Cable/Wire	3.6 A	0.181 in	4.6 mm
