TLE7469 Series
Manufacturer: INFINEON
Beta
⌘K
THE TLE7469G V52 IS A MONOLITHIC INTEGRATED VOLTAGE REGULATOR WITH TWO VOLTAGE OUTPUTS SPECIALLY DESIGNED TO SUPPLY MICROCONTROLLERS WITH DUAL SUPPLY VOLTAGE.
| Part | Current - Quiescent (Iq) | Voltage - Input (Max) [Max] | Supplier Device Package | Mounting Type | Qualification | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Number of Regulators | Package / Case | Protection Features | PSRR | Current - Output | Grade | Voltage - Output (Min/Fixed) | Control Features | Voltage Dropout (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

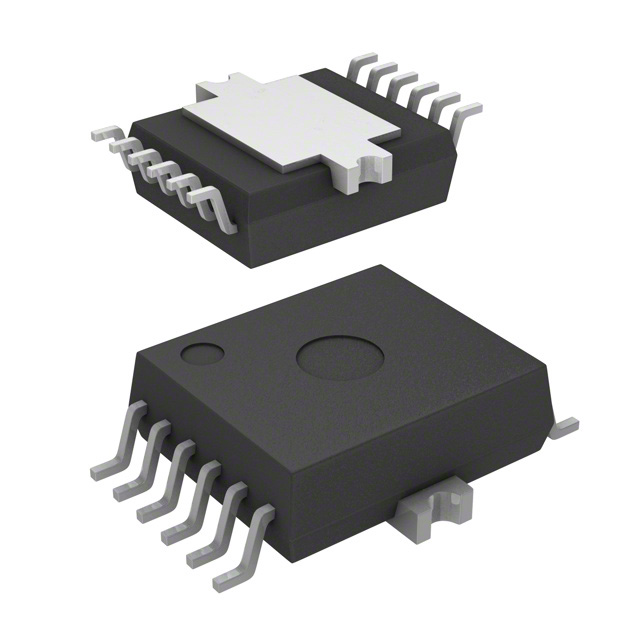

 INFINEON | 55 µA | 45 V | PG-DSO-12-11 | Surface Mount | AEC-Q100 | Positive | -40 C | 150 °C | 2 | 12-BSOP (0.295" 7.50mm Width) Exposed Pad | Over Current Over Temperature Short Circuit | 60 dB | 0.2 A 215 mA | Automotive | 2.6 V 5 V | Inhibit Reset Watchdog | 0.6 V |
 INFINEON | 55 µA | 45 V | PG-DSO-12-11 | Surface Mount | AEC-Q100 | Positive | -40 C | 150 °C | 2 | 12-BSOP (0.295" 7.50mm Width) Exposed Pad | Over Current Over Temperature Short Circuit | 60 dB | 0.2 A 215 mA | Automotive | 3.3 V 5 V | Inhibit Reset Watchdog | 0.6 V |
