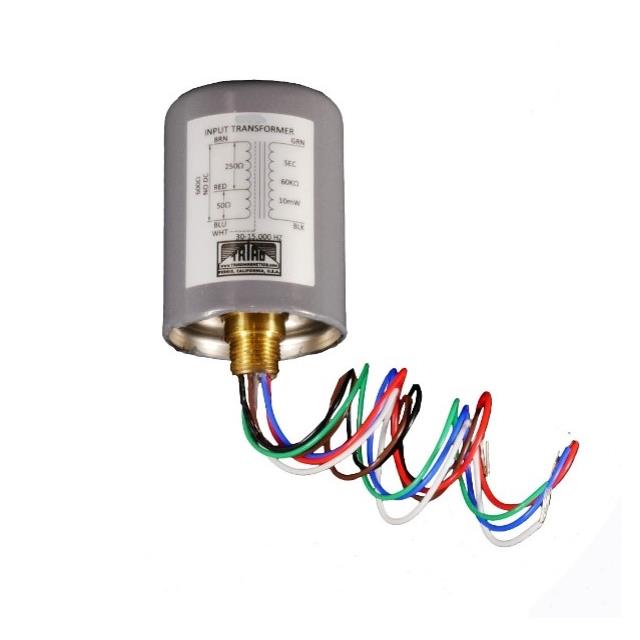

AJ Series

Catalog

IMPEDANCE MATCH AUDIO XFMR 10KCT/2500?:2000CT/500 (2.24:1) 100MW ROHS COMPLIANT: YES

Part	DC Resistance (DCR) - Primary	Mounting Type	Termination Style	DC Resistance (DCR) - Secondary	Transformer Type	Impedance - Secondary (Ohms) [Min]	Impedance - Secondary (Ohms) [Max]	Impedance - Secondary (Ohms)	Frequency Response	Frequency Range [Max]	Frequency Range [Min]	Power Level	Impedance - Primary (Ohms) [Min]	Impedance - Primary (Ohms) [Max]	Impedance - Primary (Ohms)	Turns Ratio - Primary:Secondary	Impedance - Secondary (Ohms)	Impedance - Primary (Ohms)	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Impedance - Primary (Ohms) [Max]	Impedance - Primary (Ohms) [Min]
Triad Magnetics A-58J	1 kOhm	Chassis Mount	Wire Leads	200 Ohm	Impedance Matching	500 Ohms	500 Ohms	2k	3 dB	15 kHz	30 Hz	100 mW	2.5k	2.5k	10k	2.24:1
Triad Magnetics A-65J	1.63 kOhm	Chassis Mount	Wire Leads	73 Ohm	Impedance Matching			150/150	3 dB	15 kHz	30 Hz	100 mW					600 Ohms	15000 Ohms	1	5
Triad Magnetics A-61J	47 Ohm	Chassis Mount	Wire Leads	40 Ohm	Impedance Matching			150/150	3 dB	15 kHz	60 Hz	50 mW				1:1	600 Ohms	600 Ohms			150 Ohms	150 Ohms
