RACT18 Series

Catalog

LED POWER SUPPLIES 18W 198-264VIN 26-52VOUT 350MA

Part	Number of Outputs	Topology	Power (Watts)	Features	Efficiency	Voltage - Input (Max) [Max]	Ratings	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Dimming	Voltage - Isolation	Mounting Type	Weight [custom]	Weight [custom]

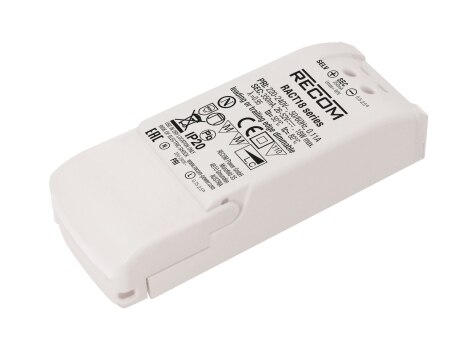

Recom Power RACT18-350	1	AC DC Converter	18 W	OCP OTP OVP SCP	85 %	264 VAC	IP20	Screw Terminal	26 V	52 V	CE	-20 ░C	50 °C	Constant Current	4.72 "	1.1 in	120 mm	45 mm	1.77 in	28 mm	350 mA	198 VAC	TRIAC	3750 VDC
Recom Power RACT18-1400	1	AC DC Converter	18 W	OCP OTP OVP SCP		264 VAC	IP20	Screw Terminal	6.5 V	13 V	CE	-20 ░C	50 °C	Constant Current	4.72 "	1.1 in	120 mm	45 mm	1.77 in	28 mm	1.4 A	198 VAC	TRIAC	3750 VDC
Recom Power RACT18-1050	1	AC DC Converter	18 W	OCP OTP OVP SCP		264 VAC	IP20	Screw Terminal	9 V	18 V	CE	-20 ░C	50 °C	Constant Current	4.72 "	1.1 in	120 mm	45 mm	1.77 in	28 mm	1.05 A	198 VAC	TRIAC	3750 VDC	Chassis Mount	100.24 g	0.221 lb
Recom Power RACT18-500	1	AC DC Converter	18 W	OCP OTP OVP SCP	84 %	264 VAC	IP20	Screw Terminal	18 V	36 V	CE	-20 ░C	50 °C	Constant Current	4.72 "	1.1 in	120 mm	45 mm	1.77 in	28 mm	500 mA	198 VAC	TRIAC	3750 VDC	Chassis Mount	100.24 g	0.221 lb
Recom Power RACT18-700	1	AC DC Converter	18 W	OCP OTP OVP SCP	85 %	264 VAC	IP20	Screw Terminal	13 V	26 V	CE	-20 ░C	50 °C	Constant Current	4.72 "	1.1 in	120 mm	45 mm	1.77 in	28 mm	700 mA	198 VAC	TRIAC	3750 VDC	Chassis Mount	100.24 g	0.221 lb
