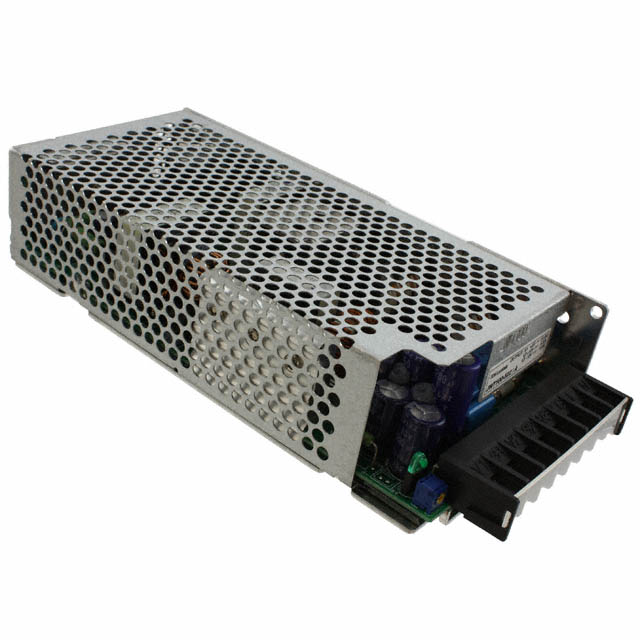

JWT75 Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 3 OUTPUTS, 75 W, 5 V, 8 A, 12 V
| Part | Efficiency | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Current - Output 1 | Power (Watts) | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Voltage - Output 1 | Current - Output 3 | Voltage - Output 3 | Voltage - Isolation | Approval Agency | Features | Current - Output 2 | Applications | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Type | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 72 % | -10 °C | 65 °C | 3 | 8 A | 75 W | 265 VAC | 85 VAC | Chassis Mount | 5 V | 500 mA | -5 V | 3000 V | CE | Adjustable Output DC Input Capable PFC Remote On/Off Universal Input | 4 A | ITE (Commercial) | 7.4 in | 1.65 " | 188 mm | 42 mm | 92 mm | 3.62 in | Open Frame | 12 V |
 TDK Corporation | 72 % | -10 °C | 65 °C | 3 | 8 A | 75 W | 265 VAC | 85 VAC | Chassis Mount | 5 V | 500 mA | -5 V | 3000 V | CE | Adjustable Output DC Input Capable PFC Universal Input | 4 A | ITE (Commercial) | 7.4 in | 1.65 " | 188 mm | 42 mm | 92 mm | 3.62 in | Open Frame | 12 V |
 TDK Corporation | 72 % | -10 °C | 65 °C | 3 | 8 A | 75 W | 265 VAC | 85 VAC | Chassis Mount | 5 V | 500 mA | -12 V | 3000 V | CE | Adjustable Output DC Input Capable PFC Remote On/Off Universal Input | 4 A | ITE (Commercial) | 7.4 in | 1.65 " | 188 mm | 42 mm | 92 mm | 3.62 in | Open Frame | 12 V |
TDK Corporation | 72 % | -10 °C | 65 °C | 3 | 8 A | 75 W | 265 VAC | 85 VAC | Chassis Mount | 5 V | 500 mA | -15 V | 3000 V | CE | Adjustable Output DC Input Capable PFC Remote On/Off Universal Input | 3.2 A | ITE (Commercial) | 7.4 in | 1.65 " | 188 mm | 42 mm | 92 mm | 3.62 in | Open Frame | 15 V |
TDK Corporation | 72 % | -10 °C | 65 °C | 3 | 8 A | 75 W | 265 VAC | 85 VAC | Chassis Mount | 5 V | 500 mA | -15 V | 3000 V | CE | Adjustable Output DC Input Capable PFC Universal Input | 3.2 A | ITE (Commercial) | 7.4 in | 1.65 " | 188 mm | 42 mm | 92 mm | 3.62 in | Open Frame | 15 V |
TDK Corporation | 72 % | -10 °C | 65 °C | 3 | 8 A | 75 W | 265 VAC | 85 VAC | Chassis Mount | 5 V | 500 mA | -12 V | 3000 V | CE | Adjustable Output DC Input Capable PFC Universal Input | 4 A | ITE (Commercial) | 7.4 in | 1.65 " | 188 mm | 41.9 mm | 91.9 mm | 3.62 in | Enclosed | 12 V |
