SMV3 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SMV 3W 270K 5%

Part	Tolerance	Supplier Device Package	Number of Terminations [custom]	Package / Case	Features	Resistance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Composition	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

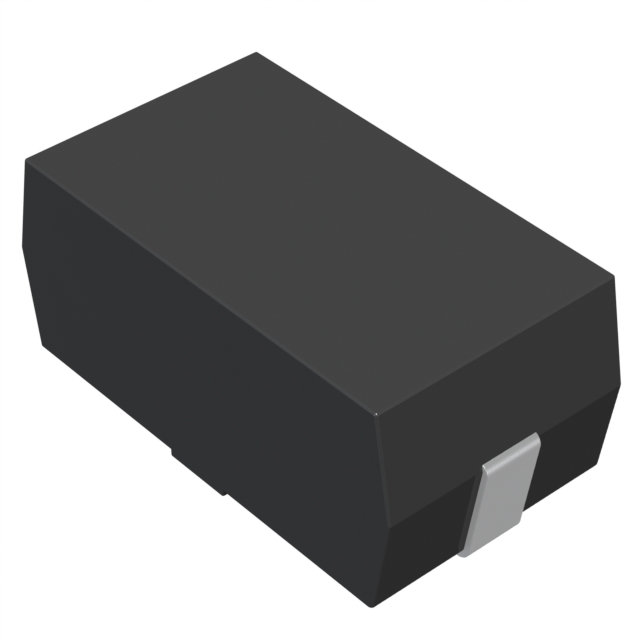

TE Connectivity AMP Connectors SMV3W270KJT	5 %	SMD	2	5329 (13573 Metric) J-Lead	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	270 kOhms	0.287 in	7.3 mm	13.5 mm	0.531 in	Metal Film	3 W	-65 ░C	200 °C	200 ppm/°C	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV3W470KJT	5 %	SMD	2	5329 (13573 Metric) J-Lead	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	470 kOhms	0.287 in	7.3 mm	13.5 mm	0.531 in	Metal Film	3 W	-65 ░C	200 °C	200 ppm/°C	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV3W5M6JT	5 %	SMD	2	5329 (13573 Metric) J-Lead	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	5.6 MOhms	0.287 in	7.3 mm	13.5 mm	0.531 in	Metal Film	3 W	-65 ░C	200 °C	200 ppm/°C	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV3W680KJT	5 %	SMD	2	5329 (13573 Metric) J-Lead	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	680 kOhms	0.287 in	7.3 mm	13.5 mm	0.531 in	Metal Film	3 W	-65 ░C	200 °C	200 ppm/°C	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV3W3M9JT	5 %	SMD	2	5329 (13573 Metric) J-Lead	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	3.9 MOhms	0.287 in	7.3 mm	13.5 mm	0.531 in	Metal Film	3 W	-65 ░C	200 °C	200 ppm/°C	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV3W6M8JT	5 %	SMD	2	5329 (13573 Metric) J-Lead	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	6.8 MOhms	0.287 in	7.3 mm	13.5 mm	0.531 in	Metal Film	3 W	-65 ░C	200 °C	200 ppm/°C	7.1 mm	0.28 in
TE Connectivity AMP Connectors SMV3W1M8JT	5 %	SMD	2	5329 (13573 Metric) J-Lead	Anti-Sulfur Flame Proof High Voltage Pulse Withstanding Safety	1.8 MOhms	0.287 in	7.3 mm	13.5 mm	0.531 in	Metal Film	3 W	-65 ░C	200 °C	200 ppm/°C	7.1 mm	0.28 in
