51-255 Series
Manufacturer: EAO
Beta
⌘K

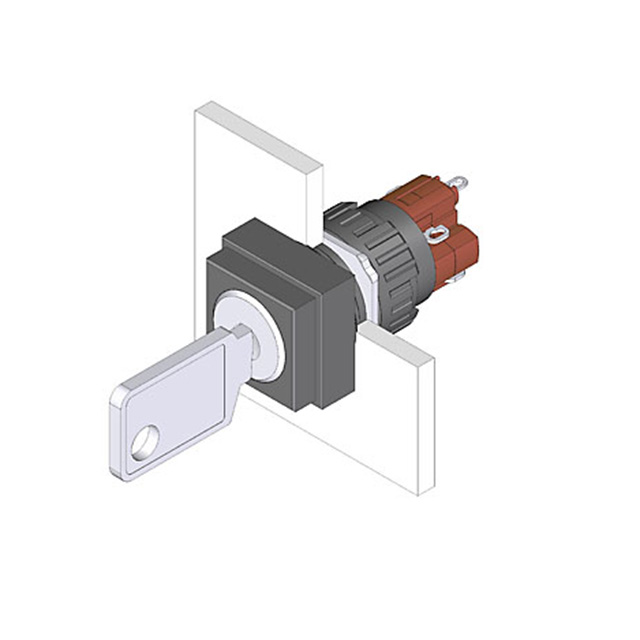

SWITCH KEYLOCK 2POS DPST 5A 250V
| Part | Depth Behind Flange | Mechanical Life | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Circuit | Number of Positions | Switch Function | Features | Key Removable Positions | Voltage Rating - AC | Mounting Type | Contact Timing | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Angle of Throw | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 35.5 mm | 50000 Cycles | 50000 Cycles | 55 °C | -25 °C | Solder Lug | DPST-NO/NC | 2 | Off-On On-Off | IP65 | 1 | 250 V | Panel Mount | Not Specified | 5 A | 16 mm | 90 ° | Flat Key |
 EAO | 36 mm | 55 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | DPST-NO/NC | 2 | Off-On On-Off | IP65 | 1 | 250 V | Panel Mount | Not Specified | 5 A | 16 mm | 90 ° | Flat Key | ||
 EAO | 26.5 mm | 55 °C | -25 °C | Solder Lug | DPST-NO/NC | 2 | Off-On On-Off | IP65 | 1 | 250 V | Panel Mount | Not Specified | 5 A | 16 mm | 90 ° | Flat Key |
