PCC03 Series

Catalog

CONN HEADER VERT 6POS 2.54MM

Part	Number of Positions	Connector Type	Contact Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length [x]	Overall Contact Length [x]	Termination	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Shrouding	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Mounting Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Contact Type	Contact Shape	Insulation Height	Insulation Height	Fastening Type	Insulation Color	Current Rating (Amps)	Number of Rows
Sullins Connector Solutions PCC03DAAN	6	Header Breakaway	Phosphor Bronze	Gold	-65 ░C	125 °C	11.43 mm	0.45 in	Solder	All	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin	2	0.76 Ám	30 Áin	Board to Board Cable	0.1 in	2.54 mm	UL94 V-0	Unshrouded	0.23 in	5.84 mm	Tin	Through Hole	3.05 mm	0.12 in	0.1 "	2.54 mm	Male Pin	Square	0.1 in	2.54 mm	Push-Pull	Black	3 A

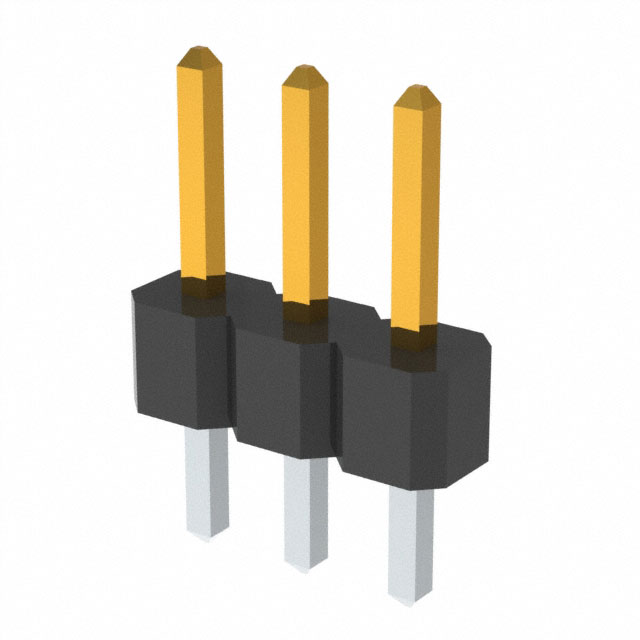

Sullins Connector Solutions PCC03SAAN		Header Breakaway	Phosphor Bronze	Gold	-65 ░C	125 °C	11.43 mm	0.45 in	Solder	All	Polybutylene Terephthalate (PBT)	2.54 µm	100 µin		0.76 Ám	30 Áin	Board to Board Cable			UL94 V-0	Unshrouded	0.23 in	5.84 mm	Tin	Through Hole	3.05 mm	0.12 in	0.1 "	2.54 mm	Male Pin	Square	0.1 in	2.54 mm	Push-Pull	Black	3 A	1
