845-128 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 128POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Contact Material	Read Out	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Card Type	Gender	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Mounting Type	Number of Positions	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Color	Pitch	Pitch	Number of Positions/Bay/Row	Operating Temperature [Max]	Operating Temperature [Min]	Features
EDAC Inc. 845-128-544-803	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	2	Through Hole	128	Cantilever	0.25 Ám	10 Áin	Wire Wrap	Green	0.1 "	2.54 mm	64	125 °C	-40 C

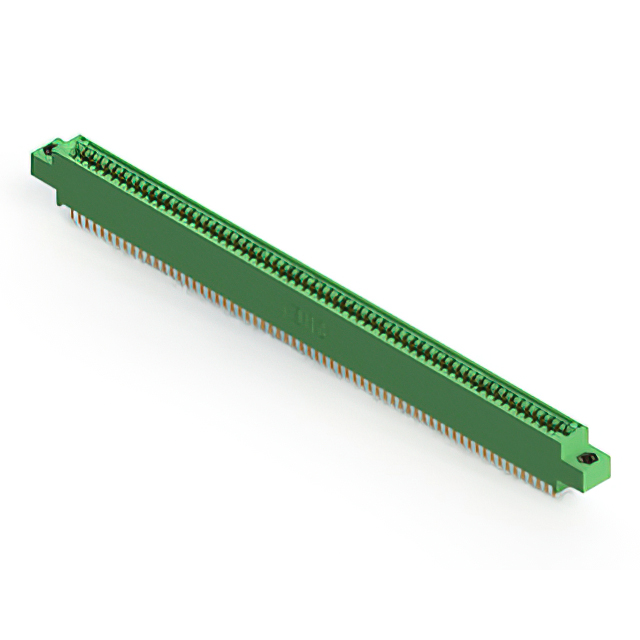

EDAC Inc. 845-128-525-807	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female	M3 Threaded Insert Top Mount Opening			2	Through Hole	128	Cantilever	0.25 Ám	10 Áin	Solder	Green	0.1 "	2.54 mm	64	125 °C	-40 C
EDAC Inc. 845-128-521-202	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	Through Hole	128	Cantilever	0.25 Ám	10 Áin	Solder	Green	0.1 "	2.54 mm	64	125 °C	-40 C
EDAC Inc. 845-128-555-812	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female	Side Mount Opening Unthreaded	0.128 "	3.25 mm	2	Board Edge Straddle Mount	128	Cantilever	0.25 Ám	10 Áin	Solder	Green	0.1 "	2.54 mm	64	125 °C	-40 C	Card Extender
EDAC Inc. 845-128-500-802	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female		0.128 "	3.25 mm	2	Through Hole	128	Cantilever	0.25 Ám	10 Áin	Solder Eyelet(s)	Green	0.1 "	2.54 mm	64	125 °C	-40 C
EDAC Inc. 845-128-500-502	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female		0.128 "	3.25 mm	2	Through Hole	128	Cantilever	0.25 Ám	10 Áin	Solder Eyelet(s)	Green	0.1 "	2.54 mm	64	125 °C	-40 C
EDAC Inc. 845-128-559-202	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	2	Right Angle Through Hole	128	Cantilever	0.25 Ám	10 Áin	Solder	Green	0.1 "	2.54 mm	64	125 °C	-40 C
EDAC Inc. 845-128-555-203	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female	Floating Bobbin Flush Mount	0.116 "	2.95 mm	2	Board Edge Straddle Mount	128	Cantilever	0.25 Ám	10 Áin	Solder	Green	0.1 "	2.54 mm	64	125 °C	-40 C	Card Extender
EDAC Inc. 845-128-544-503	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	2	Through Hole	128	Cantilever	0.25 Ám	10 Áin	Wire Wrap	Green	0.1 "	2.54 mm	64	125 °C	-40 C
EDAC Inc. 845-128-521-807	2	Diallyl Phthalate (DAP)	Copper Alloy	Dual	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Dual Edge	Female	M3 Threaded Insert Top Mount Opening			2	Through Hole	128	Cantilever	0.25 Ám	10 Áin	Solder	Green	0.1 "	2.54 mm	64	125 °C	-40 C
