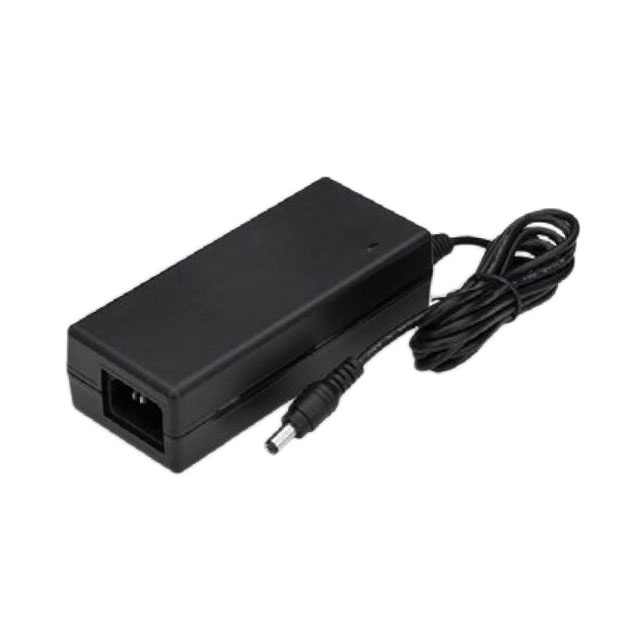

L6R90 Series

Catalog

AC/DC DESKTOP ADAPTER 19V 90W

Part	Output Connector [diameter]	Output Connector [x]	Output Connector	Polarization	Input Type	Applications	Region Utilized	Voltage - Output	Efficiency	Standard Number	Power (Watts)	No Load Power Consumption	Input Connector	Form	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Cord Length	Cord Length	Weight	Weight	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max)

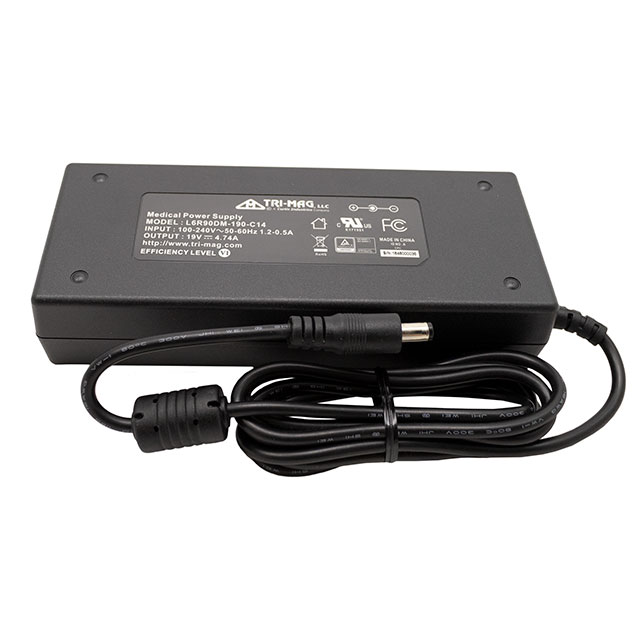

Tri-Mag, LLC L6R90DM-190-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	Medical	International	19 V	Level VI	60601-1	90 W	150 mW	IEC 320-C14	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV	64 mm	1.38 in	5.94 "	35.1 mm	150.9 mm	2.52 in	1.5 m	59 in
Tri-Mag, LLC L6R90D-240-C6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	ITE (Commercial)	International	24 V	CoC Tier 2 Level VI	62368-1	90 W	210 mW	IEC 320-C6	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV	61 mm	1.42 "	5.47 "	36 mm	139 mm	2.4 in	1.5 m	59 in	1.1 lbs	499 g	3.75 A
Tri-Mag, LLC L6R90D-300-C6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	ITE (Commercial)	International	30 V	CoC Tier 2 Level VI	62368-1	90 W	210 mW	IEC 320-C6	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV	61 mm	1.42 "	5.47 "	36 mm	139 mm	2.4 in	1.5 m	59 in	1.1 lbs	499 g	3 A
Tri-Mag, LLC L6R90D-560-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	ITE (Commercial)	International	56 V	CoC Tier 2 Level VI	62368-1	90 W	210 mW	IEC 320-C14	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV		1.42 "	5.94 "		151 mm	2.52 in	1.5 m	59 in	1.1 lbs	499 g	1.6 A	64 mm	36 mm
Tri-Mag, LLC L6R90D-180-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	ITE (Commercial)	International	18 V	CoC Tier 2 Level VI	62368-1	90 W	210 mW	IEC 320-C14	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV		1.42 "	5.94 "		151 mm	2.52 in	1.5 m	59 in	1.1 lbs	499 g		64 mm	36 mm	5 A

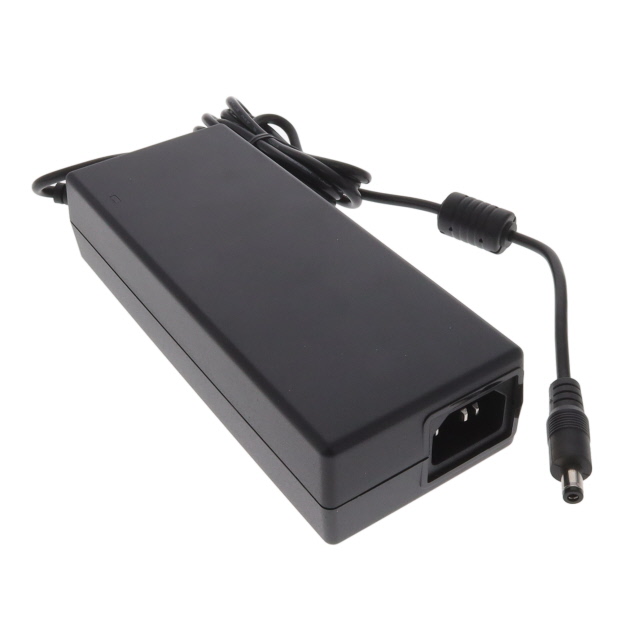

Tri-Mag, LLC L6R90DM-180-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	Medical	International	18 V	Level VI	60601-1	90 W	150 mW	IEC 320-C14	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV	64 mm	1.38 in	5.94 "	35.1 mm	150.9 mm	2.52 in	1.5 m	59 in						5 A
Tri-Mag, LLC L6R90D-480-C6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	ITE (Commercial)	International	48 V	CoC Tier 2 Level VI	62368-1	90 W	210 mW	IEC 320-C6	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV	61 mm	1.42 "	5.47 "	36 mm	139 mm	2.4 in	1.5 m	59 in	1.1 lbs	499 g	1.88 A

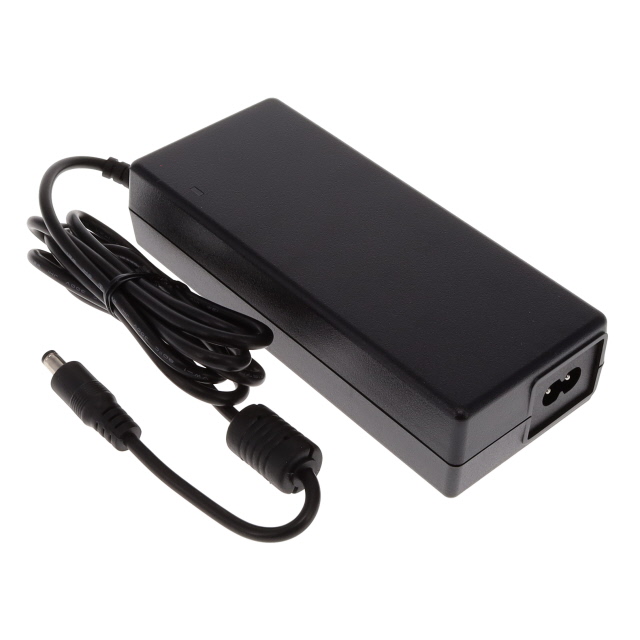

Tri-Mag, LLC L6R90DM-120-C8	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	Medical	International	12 V	Level VI	60601-1	84 W	150 mW	IEC 320-C8	Desktop (Class II)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV	64 mm	1.38 in	5.94 "	35.1 mm	150.9 mm	2.52 in	1.5 m	59 in			7 A
Tri-Mag, LLC L6R90D-190-C6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	ITE (Commercial)	International	19 V	CoC Tier 2 Level VI	62368-1	90 W	210 mW	IEC 320-C6	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV	61 mm	1.42 "	5.47 "	36 mm	139 mm	2.4 in	1.5 m	59 in	1.1 lbs	499 g
Tri-Mag, LLC L6R90D-150-C14	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Positive Center	Cord (Sold Separately)	ITE (Commercial)	International	15 V	CoC Tier 2 Level VI	62368-1	90 W	210 mW	IEC 320-C14	Desktop (Class I)	40 °C	264 VAC	90 VAC	CE cULus EN FCC TUV		1.42 "	5.94 "		151 mm	2.52 in	1.5 m	59 in	1.1 lbs	499 g	6 A	64 mm	36 mm
