CFS-0301 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish	Length [x]	Length	Height Above Board	Height Above Board	Circuit	Voltage Rating	Termination Style	Current Rating (Amps)	Electrical Life	Body Material	Mounting Type	Pitch [x]	Pitch	Pitch [x]	Actuator Level

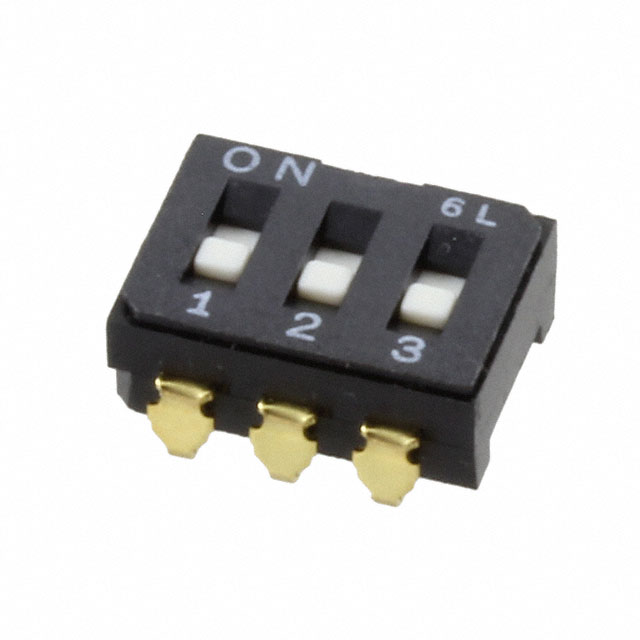

Nidec Components Corporation CFS-0301MA	Slide (Standard)	85 °C	-40 °C	Copper Alloy	Gold	0.356 in	9.04 mm	0.154 in	3.9 mm	SPST	6 VDC	J Lead	100 mA	1000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	0.1 in	Full	2.54 mm	Flush Recessed

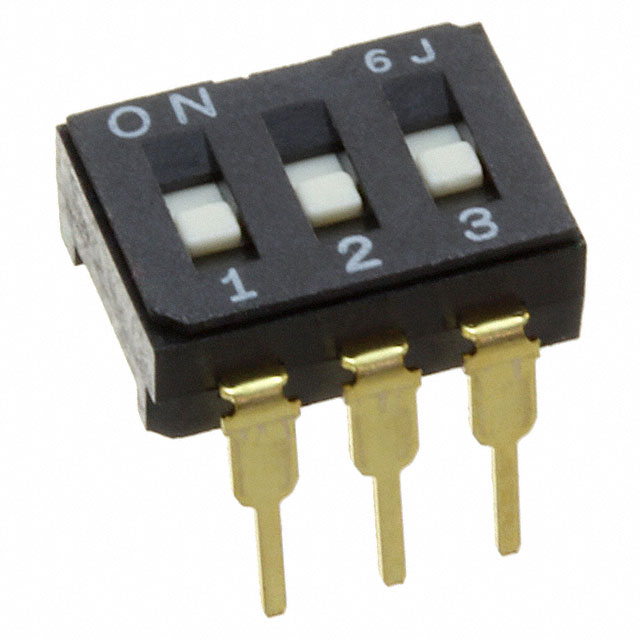

Nidec Components Corporation CFS-0301MC	Slide (Standard)	85 °C	-40 °C	Copper Alloy	Gold	0.356 in	9.04 mm	0.177 in	4.5 mm	SPST	6 VDC	PC Pin	100 mA	1000 Cycles	Polyphenylene Sulfide (PPS)	Through Hole	0.1 in	Full	2.54 mm	Flush Recessed
Nidec Components Corporation CFS-0301TA	Slide (Standard)	85 °C	-40 °C	Copper Alloy	Gold	0.356 in	9.04 mm	0.154 in	3.9 mm	SPST	6 VDC	J Lead	100 mA	1000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	0.1 in	Full	2.54 mm	Flush Recessed

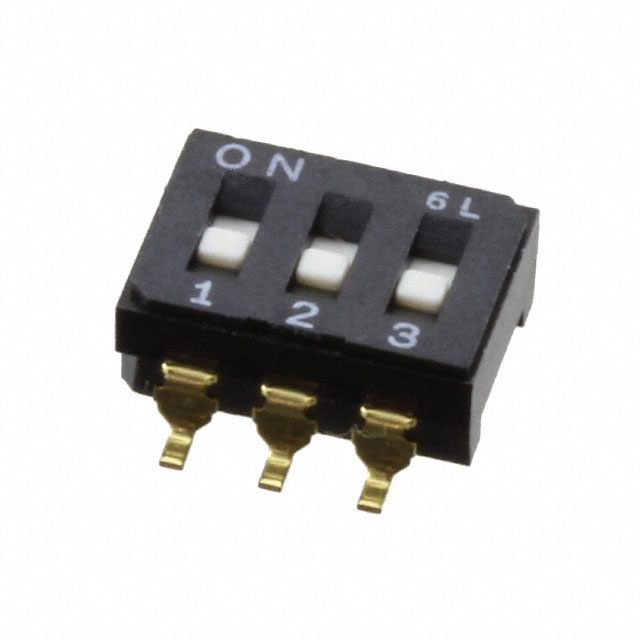

Nidec Components Corporation CFS-0301MB	Slide (Standard)	85 °C	-40 °C	Copper Alloy	Gold	0.356 in	9.04 mm	0.146 in	3.7 mm	SPST	6 VDC	Gull Wing	100 mA	1000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	0.1 in	Full	2.54 mm	Flush Recessed
Nidec Components Corporation CFS-0301TB	Slide (Standard)	85 °C	-40 °C	Copper Alloy	Gold	0.356 in	9.04 mm	0.146 in	3.7 mm	SPST	6 VDC	Gull Wing	100 mA	1000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	0.1 in	Full	2.54 mm	Flush Recessed
