SA18304 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

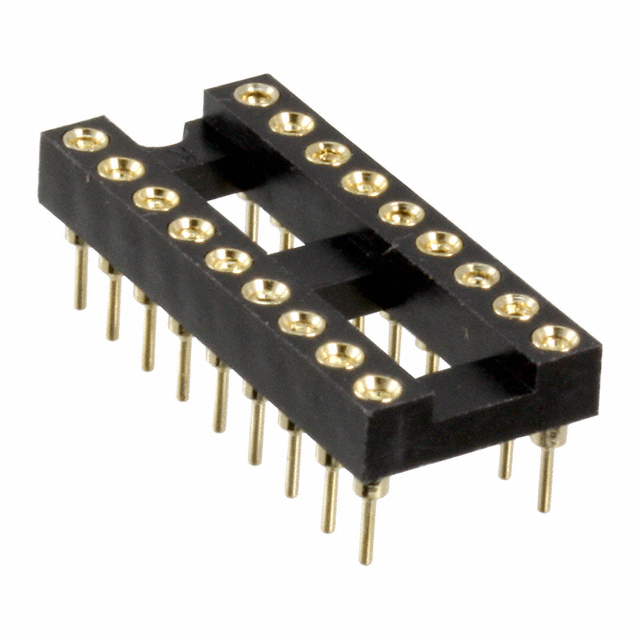

CONN IC DIP SOCKET 18POS GOLD
| Part | Material Flammability Rating | Contact Resistance | Current Rating (Amps) | Contact Finish Thickness - Mating | Housing Material | Contact Material - Post [custom] | Number of Positions or Pins (Grid) | Features | Pitch - Post | Pitch - Post | Type | Type | Type | Mounting Type | Contact Finish - Mating | Termination | Contact Material - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | UL94 V-0 | 4 mOhm | 3 A | Flash | Glass Filled Polyester Thermoplastic | Brass | 18 | Open Frame | 0.1 in | 2.54 mm | 7.62 mm | 0.3 in | DIP | Through Hole | Gold | Solder | Beryllium Copper | 2.03 µm | 80 µin | Gold | -40 C | 105 ░C | 0.1 " | 2.54 mm |
