PPPC362 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

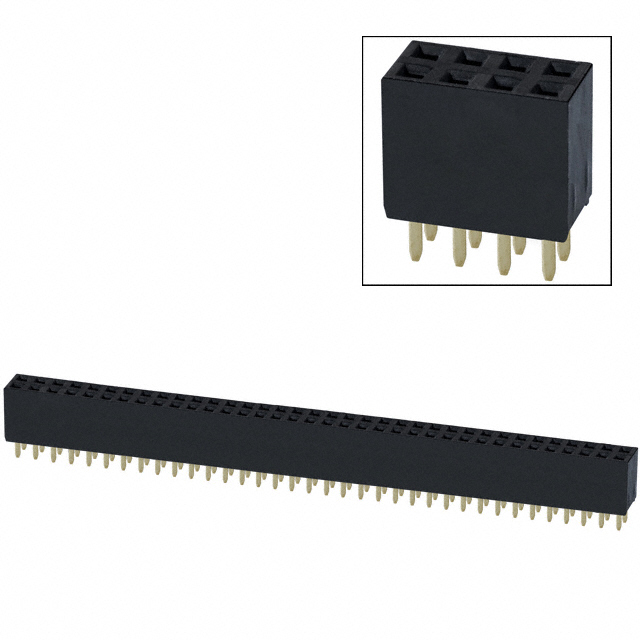

CONN HDR 72POS 0.1 GOLD PCB
| Part | Insulation Material | Contact Finish Thickness - Post | Contact Material | Contact Shape | Insulation Color | Material Flammability Rating | Termination | Pitch - Mating | Pitch - Mating | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Insulation Height | Insulation Height | Number of Rows [custom] | Connector Type | Fastening Type | Mounting Type | Contact Type | Contact Finish - Mating | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Number of Positions Loaded | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyester | Flash | Phosphor Bronze | Square | Black | UL94 V-0 | Solder | 0.1 " | 2.54 mm | 0.1 in | 2.54 mm | 250 V | -40 C | 105 ░C | 72 | 0.335 " | 8.51 mm | 2 | Header | Push-Pull | Through Hole | Female Socket | Gold | 3 A | 0.126 " | 3.2 mm | Gold | All | Flash |
