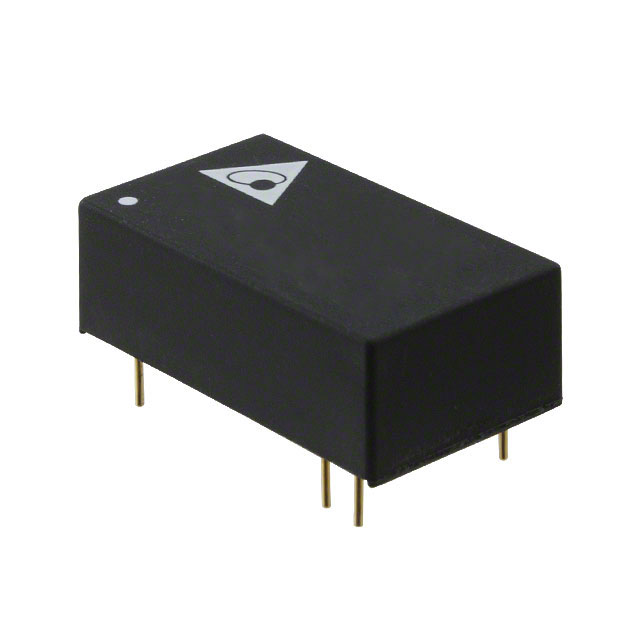

DB02S Series

Catalog

DC DC CONVERTER 15V 2W

Part	Number of Outputs	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Power (Watts)	Package / Case	Mounting Type	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]
Delta Electronics DB02S0515A	1	73 %	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	SCP UVLO	15 V	Medical	4.5 V	80 °C	-40 C	Isolated Module	2 W	16-DIP Module 6 Leads	Through Hole	1.5 kV	134 mA	9 V
Delta Electronics DB02S1212A	1	80 %	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	SCP UVLO	12 V	Medical	9 V	80 °C	-40 C	Isolated Module	2 W	16-DIP Module 6 Leads	Through Hole	1.5 kV	167 mA	18 V
Delta Electronics DB02S2415A	1	81 %	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	SCP UVLO	15 V	Medical	18 V	80 °C	-40 C	Isolated Module	2 W	16-DIP Module 6 Leads	Through Hole	1.5 kV	134 mA	36 V
Delta Electronics DB02S2405A	1	77 %	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	SCP UVLO	5 V	Medical	18 V	80 °C	-40 C	Isolated Module	2 W	16-DIP Module 6 Leads	Through Hole	1.5 kV	400 mA	36 V
Delta Electronics DB02S4803A	1	71 %	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	SCP UVLO	3.3 V	Medical	36 V	80 °C	-40 C	Isolated Module	2 W	16-DIP Module 6 Leads	Through Hole	1.5 kV	500 mA	75 V
Delta Electronics DB02S2412A	1	80 %	7.5 mm	13.7 mm	0.94 in	23.9 mm	0.3 in	0.54 in	SCP UVLO	12 V	Medical	18 V	80 °C	-40 C	Isolated Module	2 W	16-DIP Module 6 Leads	Through Hole	1.5 kV	167 mA	36 V
