GTE10 Series

Catalog

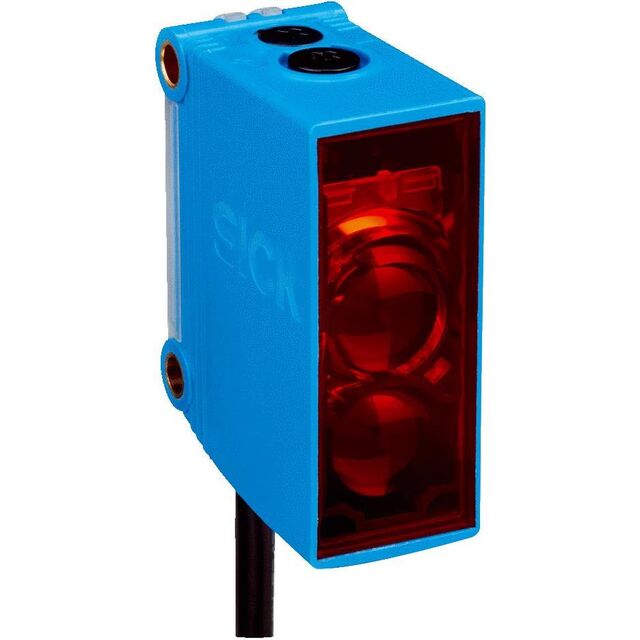

SENSOR PROXIMITY 2M RELAY

Part	Adjustment Type	Cable Length	Cable Length	Operating Temperature [Max]	Operating Temperature [Min]	Light Source	Connection Method	Output Configuration	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Method	Response Time	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Ingress Protection
SICK, Inc. 1065875	Adjustable Potentiometer	78.74 "	2 m	60 °C	-30 °C	Infrared (880nm)	Cable	Dark-ON/Light-ON	24 V	240 VDC	Proximity	10 ms	20 mm	2000 mm	78.74 "	0.787 "	IP67
SICK, Inc. 1064697	Adjustable Potentiometer			60 °C	-30 °C	Red (625nm)	Connector M12	PNP	10 VDC	30 VDC	Proximity	500 µs	20 mm	1300 mm	51.181 in	0.787 "	IP67
SICK, Inc. 1065866	Adjustable Potentiometer	78.74 "	2 m	60 °C	-30 °C	Red (625nm)	Cable	PNP	10 VDC	30 VDC	Proximity	500 µs	20 mm	1300 mm	51.181 in	0.787 "	IP67
SICK, Inc. 1065868	Adjustable Potentiometer	78.74 "	2 m	60 °C	-30 °C	Red (625nm)	Cable	NPN	10 VDC	30 VDC	Proximity	500 µs	20 mm	1300 mm	51.181 in	0.787 "	IP67
SICK, Inc. 1065873	Adjustable Potentiometer	78.74 "	2 m	60 °C	-30 °C	Red (625nm)	Cable	Dark-ON/Light-ON	24 V	240 VDC	Proximity	10 ms	20 mm	1300 mm	51.181 in	0.787 "	IP67
SICK, Inc. 1065874	Adjustable Potentiometer	78.74 "	2 m	60 °C	-30 °C	Infrared (880nm)	Cable	Dark-ON/Light-ON	24 V	240 VDC	Proximity	10 ms	20 mm	2000 mm	78.74 "	0.787 "	IP67
SICK, Inc. GTE10-P4212	Adjustable Potentiometer			60 °C	-30 °C	Red (625nm)	Connector M12	PNP	10 VDC	30 VDC	Proximity	500 µs	20 mm	1300 mm	51.181 in	0.787 "	IP67
SICK, Inc. 1065872	Adjustable Potentiometer			60 °C	-30 °C	Red (625nm)	Connector M12	NPN	10 VDC	30 VDC	Proximity	500 µs	20 mm	1300 mm	51.181 in	0.787 "	IP67
