FZ600R17 Series

Manufacturer: INFINEON

Catalog

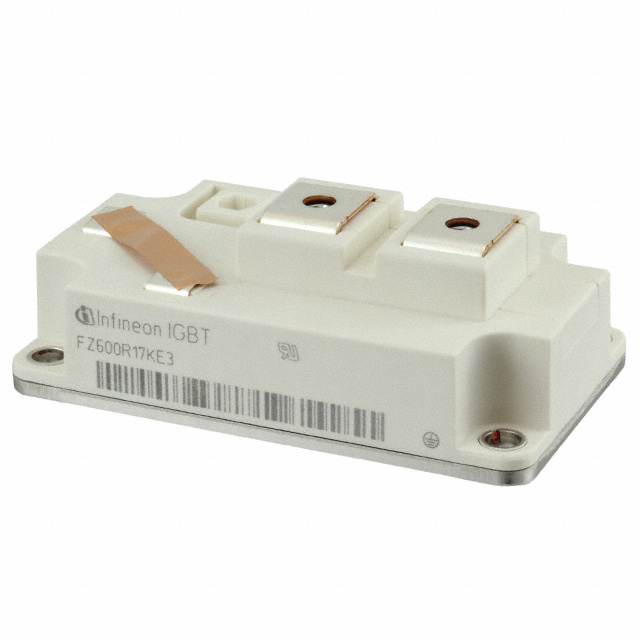

THE FZ600R17KE3 IS A SINGLE SWITCH IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1700 V AND 600 A.

Part	IGBT Type	Power - Max [Max]	Input	Current - Collector Cutoff (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]	Input Capacitance (Cies) @ Vce	Configuration	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Min]	Operating Temperature [Max]
INFINEON FZ600R17KE3HOSA1	Trench Field Stop	3150 W	Standard	3 mA	Chassis Mount	1700 V	Module	840 A	54 nF	Single	Module	2.45 V	-40 C	125 °C
INFINEON FZ600R17KE3S4HOSA1	Trench Field Stop	3150 W	Standard	3 mA	Chassis Mount	1700 V	Module	1200 A	54 nF	Single	Module	2.45 V	-40 C	125 °C
INFINEON FZ600R17KE4HOSA1	Trench Field Stop	3350 W	Standard	1 mA	Chassis Mount	1700 V	Module	1200 A	49 nF	Single	Module	2.3 V	-40 C	150 °C
