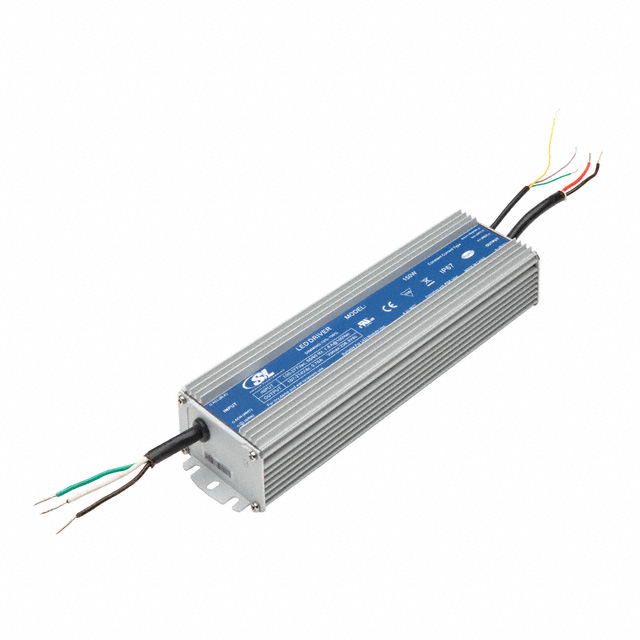

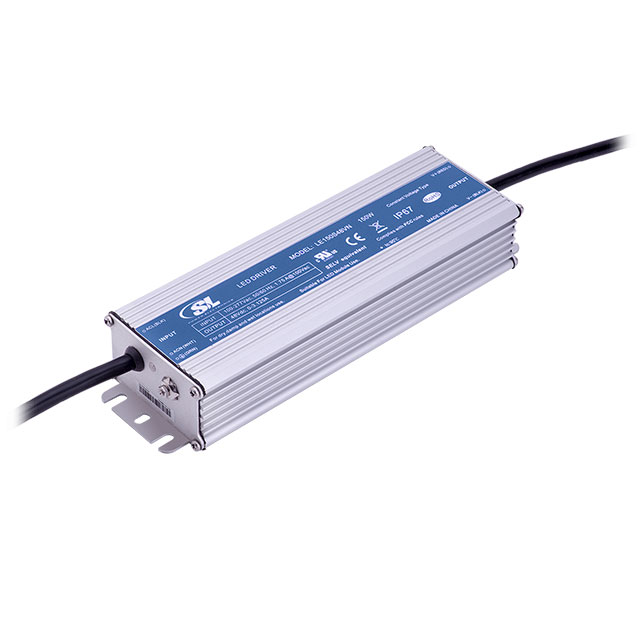

LE150S24 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
LED DRIVER CV AC/DC 24V 6.25A
| Part | Weight [custom] | Weight [custom] | Mounting Type | Number of Outputs | Ratings | Voltage - Input (Max) [Max] | Type | Features | Voltage - Output | Approval Agency | Efficiency | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Current - Output (Max) [Max] | Topology | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Input (Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 3.3 lbs | 1.5 kg | Chassis Mount | 1 | IP67 | 305 VAC | Constant Voltage | OCP OTP OVP SCP | 24 V | CE CSA EN UL | 93 % | Wire Leads | -35 °C | 70 °C | 150 W | 6.25 A | AC DC Converter | 2.66 in | 40 mm | 67.5 mm | 8.9 " | 226 mm | 1.57 " | 90 VAC |
