XT3S4 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

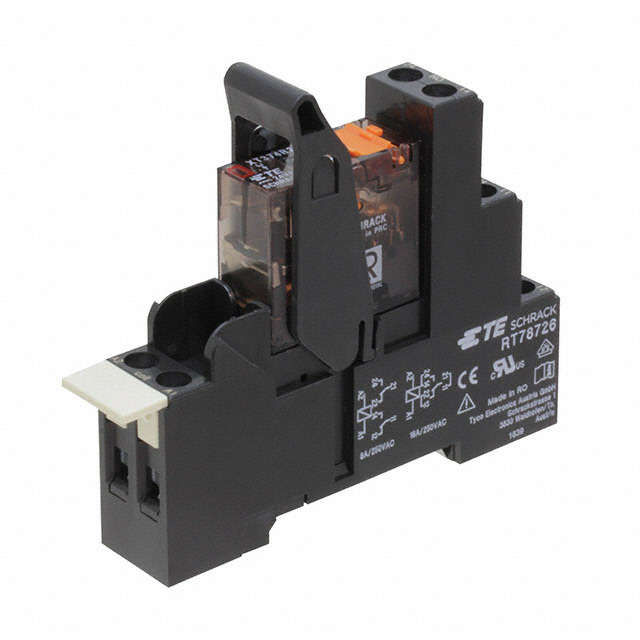

RELAY GEN PURPOSE SPDT 16A 24V
| Part | Coil Resistance | Approval Agency | Coil Current | Switching Voltage [Max] | Features | Termination Style | Must Operate Voltage | Contact Material | Load - Max Switching | Release Time | Must Release Voltage | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Contact Form | Operate Time | Mounting Type | Coil Voltage | Contact Rating (Current) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 350 Ohms | cURus VDE | 16.7 mA | 400 VAC | Lighted Indicator Socket Included | Screw Terminal | 18 VAC | Silver Nickel (AgNi) | 6400 VA | 6 ms | 3.6 VAC | General Purpose | 70 °C | -40 C | Non Latching | SPDT (1 Form C) | 9 ms | DIN Rail | 24 VAC | 16 A |
 TE Connectivity AMP Connectors | 8.1 kOhms | cURus VDE | 16.7 mA | 400 VAC | Lighted Indicator Socket Included | Screw Terminal | 86.3 VAC | Silver Nickel (AgNi) | 6400 VA | 6 ms | 17.3 VAC | General Purpose | 70 °C | -40 C | Non Latching | SPDT (1 Form C) | 9 ms | DIN Rail | 115 VAC | 16 A |
