RT7297 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K

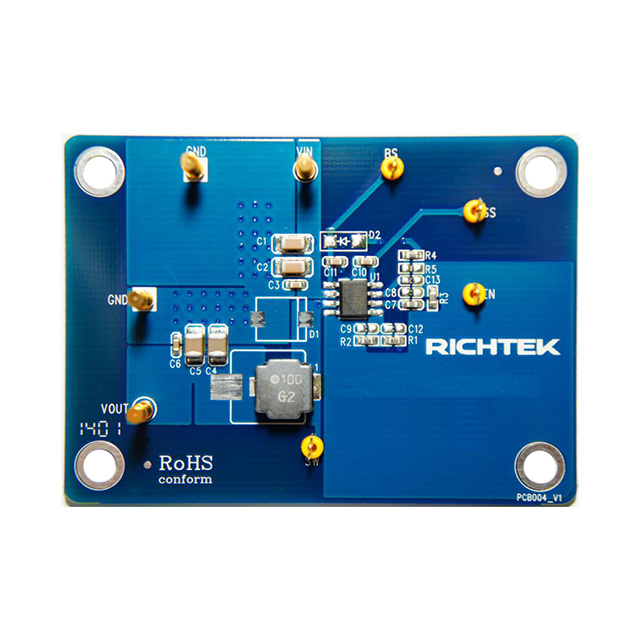

EVAL BOARD FOR RT7297A
| Part | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Frequency - Switching | Main Purpose | Regulator Topology | Current - Output | Utilized IC / Part | Contents | Output Configuration | Voltage - Input (Max) [Max] | Number of Outputs | Voltage - Input (Min) [Min] | Function | Supplier Device Package | Mounting Type | Package / Case | Package / Case [y] | Package / Case [x] | Output Type | Voltage - Output (Min/Fixed) | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Max) [Max] | Synchronous Rectifier |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | 3.3 V | 18 V | 4.5 V | 340 kHz | DC/DC Step Down | Buck | 3 A | RT7297A | Board(s) | |||||||||||||||||
 Richtek USA Inc. | 800 kHz | 3 A | Positive | 18 V | 1 | 4.5 V | Step-Down | 8-SOP-EP | Surface Mount | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | Adjustable | 0.8 V | Buck | 85 C | -40 ¯C | 12 V | ||||||||||||
Richtek USA Inc. | 340 kHz | 3 A | Positive | 18 V | 1 | 4.5 V | Step-Down | 8-SOP-EP | Surface Mount | 8-SOIC Exposed Pad | 3.9 mm | 0.154 in | Adjustable | 0.8 V | Buck | 85 C | -40 ¯C | 15 V |
