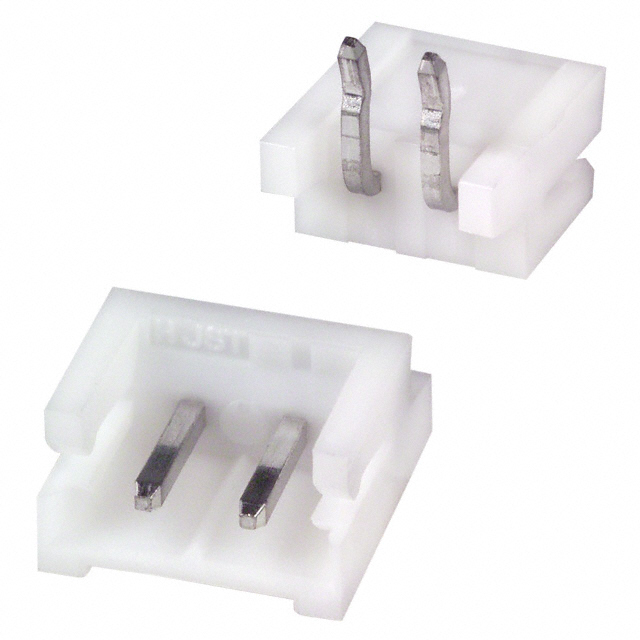

S2B-EH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 2POS 2.5MM
| Part | Fastening Type | Termination | Mounting Type | Style | Contact Shape | Voltage Rating | Contact Type | Contact Length - Mating | Contact Length - Mating | Number of Rows | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Number of Positions | Contact Material | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Insulation Material | Contact Finish - Post | Shrouding | Material Flammability Rating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Latch Lock | Press-Fit Solder | Right Angle Through Hole | Board to Cable/Wire | Square | 250 V | Male Pin | 4 mm | 0.157 in | 1 | 0.165 in | 4.2 mm | 2.5 mm | 0.098 in | 85 °C | -25 °C | Natural | 2 | Brass | All | 0.126 " | 3.2 mm | Header | Nylon 6/6 Polyamide (PA66) | Tin | Shrouded - 3 Wall | UL94 V-0 | 3 A |
