Resettable Fuses - PPTC Resettable PTC fuse SMD 0603 40mA 24V
Resettable Fuses - PPTC Resettable PTC fuse SMD 0603 40mA 24V
| Part | Current - Trip (It) | Current - Max [Max] | Grade | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Max [Max] | Time to Trip | Resistance - Initial (Ri) (Min) | Type | Qualification | Resistance - Post Trip (R1) (Max) [Max] | Package / Case | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Mounting Type | Thickness (Max) [Max] | Thickness (Max) [Max] | Current - Hold (Ih) (Max) | Resistance - Initial (Ri) (Min) [Min] | Current - Hold (Ih) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

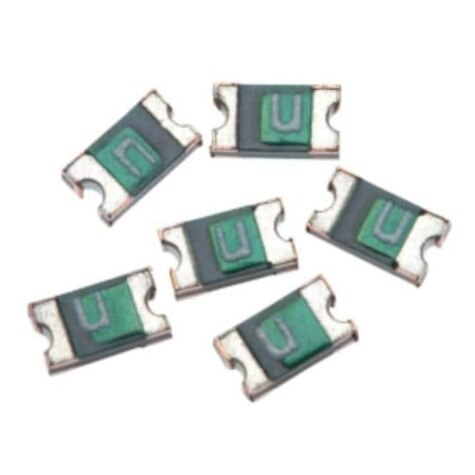

 Bel Fuse Inc. | 120 mA | 40 A | Automotive | 85 °C | -40 C | 24 V | 1 s | 4 Ohms | Polymeric | AEC-Q200 | 40 Ohms | 0603 (1608 Metric) Concave | 0.73 mm | 0.029 in | 1.6 mm | 0.063 " | Surface Mount | 0.75 mm | 0.03 in | 40 mA | ||

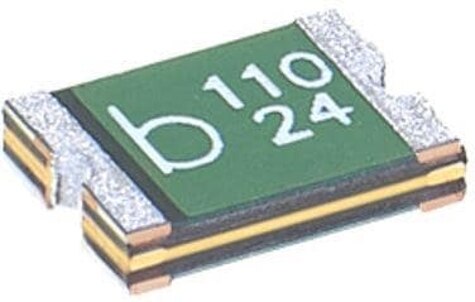

 Bel Fuse Inc. | 30 mA | 40 A | Automotive | 85 °C | -40 C | 60 V | 1 s | Polymeric | AEC-Q200 | 100 Ohms | 0603 (1608 Metric) Concave | 0.73 mm | 0.029 in | 1.6 mm | 0.063 " | Surface Mount | 0.85 mm | 0.033 in | 15 Ohms | 10 mA | ||
Bel Fuse Inc. | 90 mA | 40 A | Automotive | 85 °C | -40 C | 30 V | 1 s | Polymeric | AEC-Q200 | 50 Ohms | 0603 (1608 Metric) Concave | 0.73 mm | 0.029 in | 1.6 mm | 0.063 " | Surface Mount | 0.75 mm | 0.03 in | 6 Ohms | 30 mA | ||
 Bel Fuse Inc. | 60 mA | 40 A | Automotive | 85 °C | -40 C | 60 V | 1 s | Polymeric | AEC-Q200 | 70 Ohms | 0603 (1608 Metric) Concave | 0.73 mm | 0.029 in | 1.6 mm | 0.063 " | Surface Mount | 0.85 mm | 0.033 in | 12 Ohms | 20 mA |
