746-066 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 66POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Gender	Read Out	Contact Type	Termination	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Mounting Type	Number of Positions/Bay/Row	Color	Card Type	Contact Material	Number of Positions	Pitch	Pitch

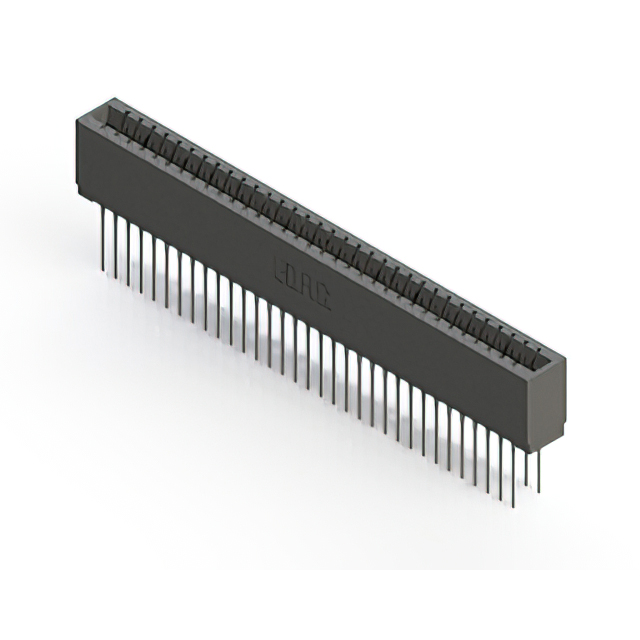

EDAC Inc. 746-066-541-601	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
EDAC Inc. 746-066-553-206	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
EDAC Inc. 746-066-520-201	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
EDAC Inc. 746-066-540-601	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
EDAC Inc. 746-066-525-601	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
EDAC Inc. 746-066-525-606	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
EDAC Inc. 746-066-541-201	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
EDAC Inc. 746-066-560-206	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever Make Before Break	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in

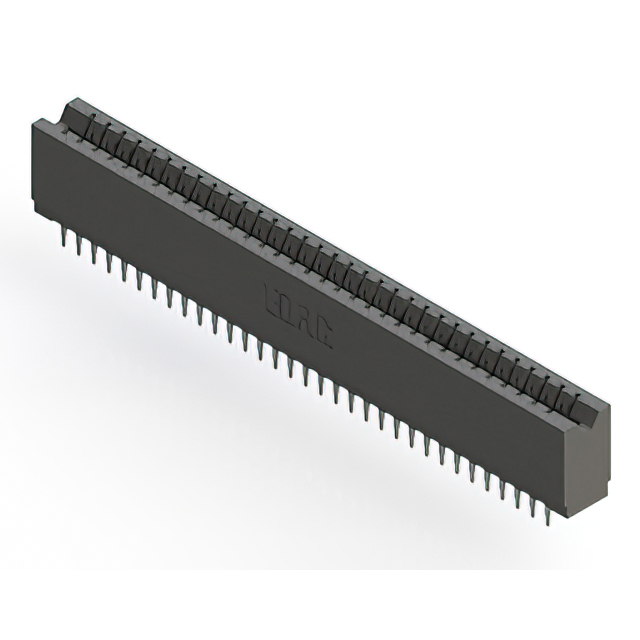

EDAC Inc. 746-066-520-606	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
EDAC Inc. 746-066-520-206	Polyester Thermoplastic	2	Gold	Female	Dual	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	30 Áin	0.76 Ám	2	Through Hole	33	Black	Non Specified - Dual Edge	Copper Alloy	66	3.18 mm	0.125 in
