77152 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

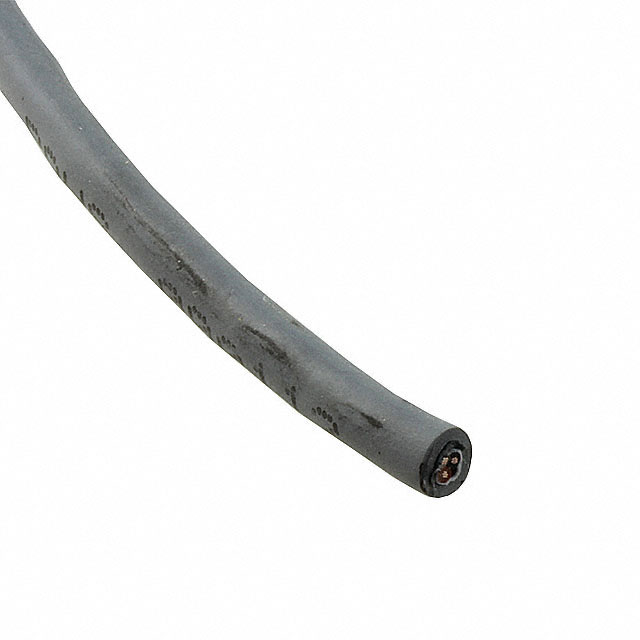

ECOGEN ECOCABLE 28AWG 2COND FOIL MPPE 77152 SL 001 1000 FT
| Part | Shield Coverage | Shield Material | Conductor Material | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Number of Conductors | Conductor Insulation | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Shield Type | Wire Gauge | Jacket Color | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Copper Tinned | Polyphenylene Ether Modified (mPPE) | 7 | 36 AWG | 600 V | 0.142 in | 3.61 mm | -50 °C | 105 ░C | Multi-Conductor | 2 | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 304.8 m | 1000 ft | Foil | 28 AWG | Slate | ISO 10993 UL Style 21915 | ||
ALPHA WIRE | 100 % | Aluminum | Copper Tinned | Polyphenylene Ether Modified (mPPE) | 7 | 36 AWG | 600 V | 0.142 in | 3.61 mm | -50 °C | 105 ░C | Multi-Conductor | 2 | Polyphenylene Ether Modified (mPPE) | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | Foil | 28 AWG | Slate | ISO 10993 UL Style 21915 | 100 ft | 30.5 m |
