BL-0 Series
Manufacturer: TapeCase
Beta
⌘K

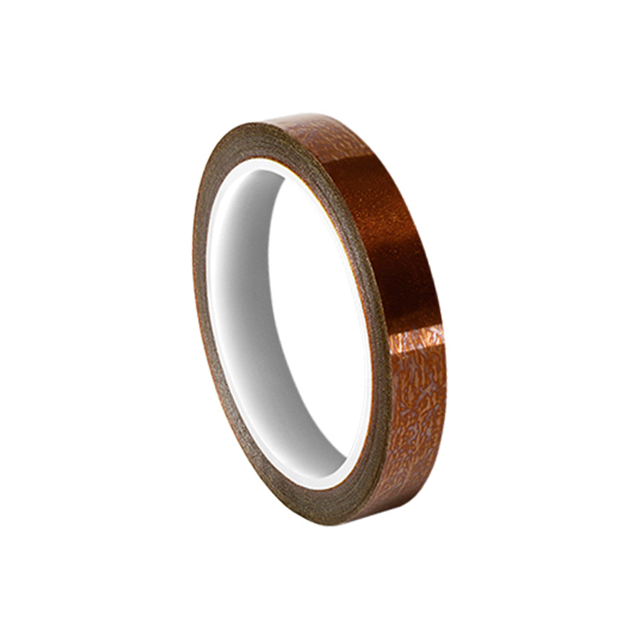

TAPE FILM AMBER 0.71"X36YDS
| Part | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Temperature Range [Min] | Temperature Range [Max] | Shelf Life Start | Backing, Carrier | Storage/Refrigeration Temperature | Storage/Refrigeration Temperature | Thickness | Thickness | Thickness | Shelf Life | Tape Type | Adhesive | Color | Thickness - Backing, Carrier [custom] | Thickness - Backing, Carrier [custom] | Thickness - Backing, Carrier [custom] | Width [y] | Width [y] | Length | Length | Length | Temperature Range [Max] | Temperature Range [Min] | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TapeCase | 0.0015 in 0.0016 " | 0.038 mm 0.041 mm | 1.5 mils 1.6 mils | -100 °F 4 °C 40 °F | 185 °C 260 °C | Date of Shipment | Polyimide Polyimide Film | 24 °C | 75 °F | 2.5 mils 2.6 mils | 0.064 mm 0.066 mm | 0.0025 in 0.0026 " | 12 Months | Film High Temp Polyimide | Silicone | Amber | 1 mils | 0.025 mm | 0.001 " | 18 mm | 0.71 in | 32.9 m | 108 ft | 36 yd | 260 °C | -73 °C | High Temperature Masking Wave Soldering |
