tesys-d Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K
CONTACTOR: 4-POLE; NC + NO X3; 220VDC; 10A; TESYS D; W: 45MM; H: 58MM
| Part | Mounting Type | Contact Rating (Current) | Must Release Voltage | Termination Style | Must Operate Voltage | Switching Voltage [Max] | Coil Voltage | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Release Time | Features | Coil Type | Relay Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | Chassis Mount DIN Rail | 10 A | 22 VDC | Screw Terminal | 176 VDC | 690 VAC | 220 VDC | 4PST-3NO/1NC (3 Form A 1 Form B) | 50 °C | -25 °C | ||||||
 SCHNEIDER ELECTRIC | Chassis Mount DIN Rail | 9 A | 11 VDC | Screw Terminal | 77 VDC | 300 VDC 690 VAC | 110 VDC | 3PST-NO (3 Form A) | 70 °C | -40 C | 72.45 ms | 24 ms | Auxiliary Contacts Diode | |||
 SCHNEIDER ELECTRIC | Chassis Mount DIN Rail | 25 A | 2.4 VDC | Screw Terminal | 19.2 VDC | 300 VDC 690 VAC | 24 VDC | 3PST-NO (3 Form A) | 60 °C | -40 C | Auxiliary Contacts | |||||
 SCHNEIDER ELECTRIC | Chassis Mount DIN Rail | 25 A | 12.6 VAC | Screw Terminal | 35.7 VAC | 300 VDC 690 VAC | 42 VAC/DC | 4PST-NO (4 Form A) | 70 °C | -40 C | 22 ms | 19 ms | Auxiliary Contacts | |||
 SCHNEIDER ELECTRIC | DIN Rail | 10 A | 114 VAC | Screw Terminal | 323 VAC | 690 VAC | 380 VAC | 5PST-3NO/2NC (3 Form A 2 Form B) | 70 °C | -40 C | 22 ms | 17 ms | Non Latching | General Purpose | CB CCC CE CSA EAC UKCA UL | |
 SCHNEIDER ELECTRIC | Chassis Mount DIN Rail | 40 A | 12.6 VAC | Screw Terminal | 35.7 VAC | 690 VAC | 42 VAC/DC | 4PST-NO (4 Form A) | 70 °C | -40 C | 22 ms | 19 ms | Auxiliary Contacts | |||

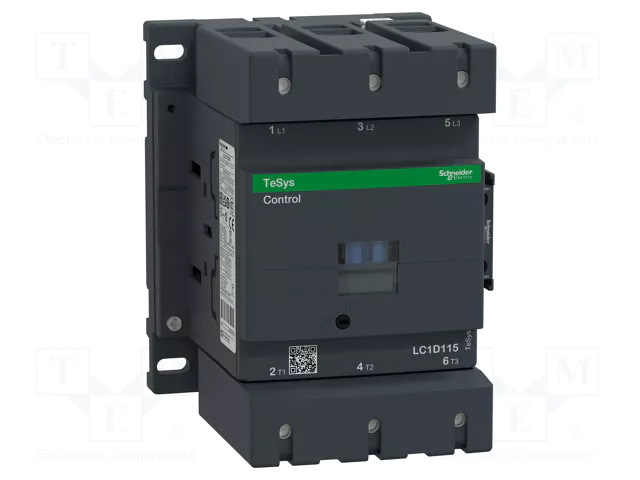

 SCHNEIDER ELECTRIC | Chassis Mount | 115 A | Screw Terminal | 1000 VAC | 24 VAC | 3PST-NO (3 Form A) | 60 °C | -40 C | Auxiliary Contacts Diode | |||||||
 SCHNEIDER ELECTRIC | Chassis Mount DIN Rail | 25 A | 4.8 VDC | Screw Terminal | 33.6 VDC | 300 VDC 690 VAC | 48 VDC | 4PST-NO (4 Form A) | 70 °C | -40 C | 72.45 ms | 24 ms | Auxiliary Contacts Diode | |||
 SCHNEIDER ELECTRIC | Chassis Mount DIN Rail | 25 A | 11 VDC | Screw Terminal | 77 VDC | 300 VDC 690 VAC | 110 VDC | 3PST-NO (3 Form A) | 70 °C | -40 C | 72.45 ms | 24 ms | Auxiliary Contacts Diode | |||
 SCHNEIDER ELECTRIC | Chassis Mount DIN Rail | 18 A | 33 VAC | Screw Terminal | 88 VAC/DC | 300 VDC 690 VAC | 110 VAC/DC | 3PST-NO (3 Form A) | 70 °C | -40 C | 22 ms | 19 ms | Auxiliary Contacts |
