208659 Series

2.00mm Pitch, iGrid PCB Header, Dual Row, Right-Angle, Through Hole, 0.76µm Gold (Au) Plating, Positive Lock, 24 Circuits, Tray, 3.20mm PC Tail Length, Natural

Manufacturer: Molex

Catalog

2.00mm Pitch, iGrid PCB Header, Dual Row, Right-Angle, Through Hole, 0.76µm Gold (Au) Plating, Positive Lock, 24 Circuits, Tray, 3.20mm PC Tail Length, Natural

Part	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions Loaded	Voltage Rating	Contact Length - Post	Contact Length - Post [x]	Contact Material	Fastening Type	Style	Number of Rows	Current Rating (Amps)	Connector Type	Mounting Type	Termination	Insulation Color	Shrouding	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Type	Contact Shape	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Insulation Material	Number of Positions
Molex 2086591641	0.079 in	2 mm	1 çm	39.4 çin	3.94 µin	0.1 µm	UL94 V-0	All	250 VAC	3.2 mm	0.126 in	Brass	Latch Holder	Board to Cable/Wire	2	Varies by Wire Gauge	Header	Through Hole Right Angle	Solder	Black	Shrouded - 4 Wall	16	-40 °C	105 ░C	Gold	Male Pin	Square	0.327 "	8.3 mm	0.079 in	2 mm	Tin	Glass Filled Nylon Polyamide (PA)
Molex 2086592840	0.079 in	2 mm	1 çm	39.4 çin	3.94 µin	0.1 µm	UL94 V-0	All	250 VAC	3.2 mm	0.126 in	Brass	Latch Lock	Board to Cable/Wire	2	Varies by Wire Gauge	Plug	Through Hole Right Angle	Solder	Beige	Shrouded - 4 Wall		-40 °C	105 ░C	Gold	Male Pin	Square	0.327 "	8.3 mm	0.079 in	2 mm	Tin	Glass Filled Nylon Polyamide (PA)	28
Molex 2086591440	0.079 in	2 mm	1 çm	39.4 çin	3.94 µin	0.1 µm	UL94 V-0	All	250 VAC	3.2 mm	0.126 in	Brass	Latch Lock	Board to Cable/Wire	2	Varies by Wire Gauge	Plug	Through Hole Right Angle	Solder	Beige	Shrouded - 4 Wall		-40 °C	105 ░C	Gold	Male Pin	Square	0.327 "	8.3 mm	0.079 in	2 mm	Tin	Glass Filled Nylon Polyamide (PA)	14
Molex 2086592660	0.079 in	2 mm	1 çm	39.4 çin	15 µin	0.38 µm	UL94 V-0	All	250 VAC	3.2 mm	0.126 in	Brass	Latch Holder	Board to Cable/Wire	2	Varies by Wire Gauge	Header	Through Hole Right Angle	Solder	Beige	Shrouded - 4 Wall		-40 °C	105 ░C	Gold	Male Pin	Square	0.327 "	8.3 mm	0.079 in	2 mm	Tin	Glass Filled Nylon Polyamide (PA)	26
Molex 2086591640	0.079 in	2 mm	1 çm	39.4 çin	3.94 µin	0.1 µm	UL94 V-0	All	250 VAC	3.2 mm	0.126 in	Brass	Latch Lock	Board to Cable/Wire	2	Varies by Wire Gauge	Plug	Through Hole Right Angle	Solder	Natural	Shrouded - 4 Wall	16	-40 °C	105 ░C	Gold	Male Pin	Square	0.327 "	8.3 mm	0.079 in	2 mm	Tin	Glass Filled Nylon Polyamide (PA)

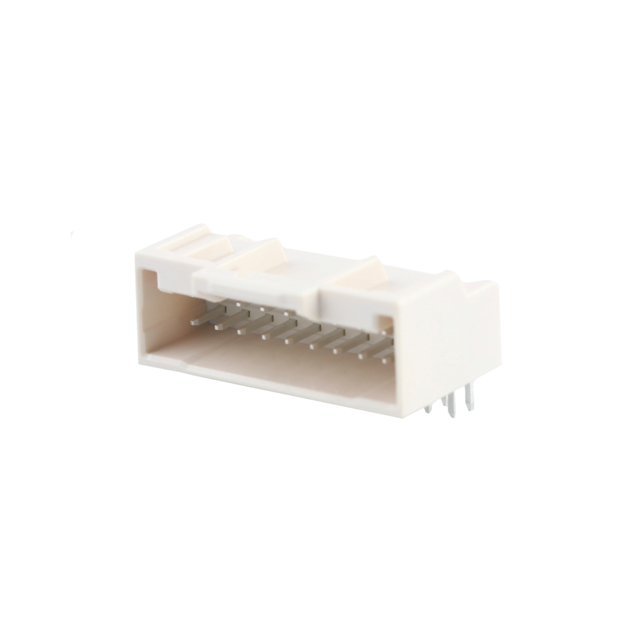

Molex 2086592040	0.079 in	2 mm	1 çm	39.4 çin	3.94 µin	0.1 µm	UL94 V-0	All	250 VAC	3.2 mm	0.126 in	Brass	Latch Lock	Board to Cable/Wire	2	Varies by Wire Gauge	Plug	Through Hole Right Angle	Solder	Beige	Shrouded - 4 Wall		-40 °C	105 ░C	Gold	Male Pin	Square	0.327 "	8.3 mm	0.079 in	2 mm	Tin	Glass Filled Nylon Polyamide (PA)	20
Molex 2086591441
Molex 2086593241	0.079 in	2 mm	1 çm	39.4 çin	3.94 µin	0.1 µm	UL94 V-0	All	250 VAC	3.2 mm	0.126 in	Brass	Latch Holder	Board to Cable/Wire	2	Varies by Wire Gauge	Header	Through Hole Right Angle	Solder	Black	Shrouded - 4 Wall		-40 °C	105 ░C	Gold	Male Pin	Square	0.327 "	8.3 mm	0.079 in	2 mm	Tin	Glass Filled Nylon Polyamide (PA)
Molex 2086593270	0.079 in	2 mm	1 çm	39.4 çin	30 Áin	0.76 Ám	UL94 V-0	All	250 VAC	3.2 mm	0.126 in	Brass	Latch Holder	Board to Cable/Wire	2	Varies by Wire Gauge	Header	Through Hole Right Angle	Solder	Beige	Shrouded - 4 Wall		-40 °C	105 ░C	Gold	Male Pin	Square	0.327 "	8.3 mm	0.079 in	2 mm	Tin	Glass Filled Nylon Polyamide (PA)
Molex 2086593041
