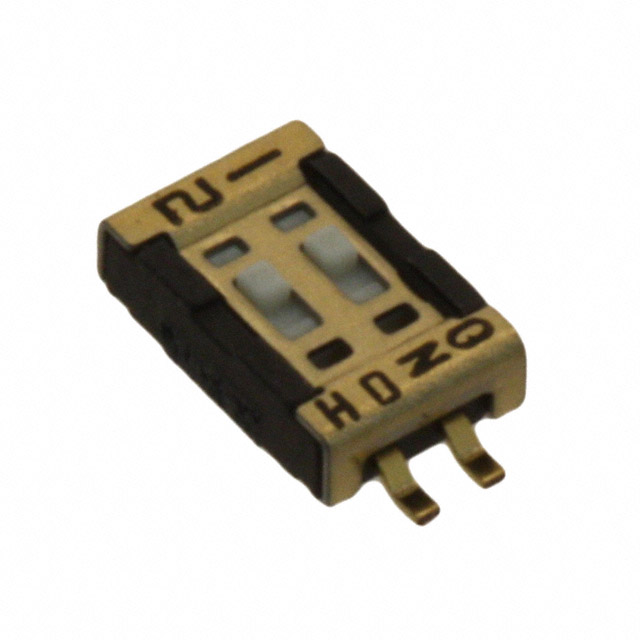

CVS-02T Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH SLIDE DIP SPST 0.1A 6V
| Part | Length [x] | Length [x] | Body Material | Electrical Life | Actuator Type | Number of Positions | Contact Finish | Height Above Board [z] | Height Above Board [z] | Mounting Type | Voltage Rating | Current Rating (Amps) | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Pitch | Pitch | Contact Material | Actuator Level | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 3 mm | 0.118 in | Polyphenylene Sulfide (PPS) | 1000 Cycles | Slide (Standard) | 2 | Gold | 1.45 mm | 0.057 in | Surface Mount | 6 V | 100 mA | Gull Wing | 85 °C | -40 C | SPST | 1 mm | 0.039 in | Stainless Steel | Raised |
