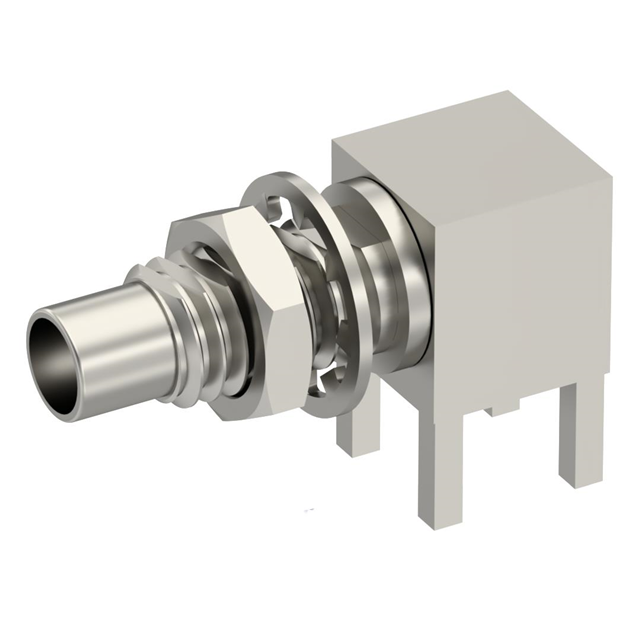

1110-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC M RA BHD
| Part | Includes | Center Contact Plating | Insertion Loss | Body Finish | Dielectric Material | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Fastening Type | Shield Termination | Center Contact Material | Connector Type | Mounting Feature | Frequency - Max [Max] | Contact Termination | Number of Ports | Mounting Type | Impedance | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1 Connector 1 Lockwasher 1 Nut | Gold | 0.5 dB | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Brass | -65 ░C | 165 °C | Silver | Threaded | Solder | Brass | Jack Male Pin | Bulkhead - Front Side Nut | 10 GHz | Solder | 1 | Panel Mount Right Angle Through Hole | 50 Ohms | SMC |
