EDS04 Series

Catalog

SWITCH DIP OFF ON SPST 4 RAISED SLIDE 0.025A 24VDC J-LEAD 2000CYCLES 2.54MM SMD T/R

Part	Mechanical Life	Body Material	Electrical Life	Length	Length	Termination Style	Contact Material	Mounting Type	Circuit	Pitch	Pitch	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Contact Finish	Actuator Level	Actuator Type	Number of Positions	Height Above Board	Height Above Board

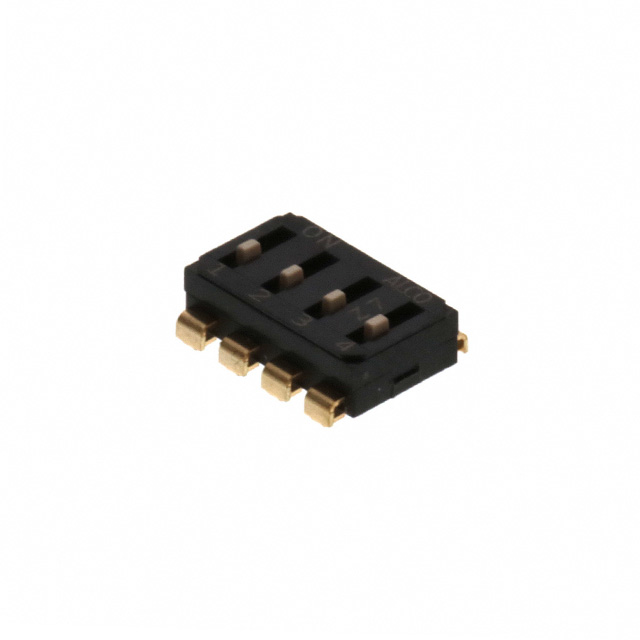

TE Connectivity AMP Connectors EDS04SNNNTR04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	10.06 mm	0.396 "	J Lead	Copper Alloy	Surface Mount	SPST	2.54 mm	0.1 "	24 VDC	85 °C	-20 ░C	25 mA	3.85 mm	0.152 in	Gold	Raised	Slide (Standard)	4
TE Connectivity AMP Connectors EDS04SNRNTU04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	10.06 mm	0.396 "	J Lead	Copper Alloy	Surface Mount	SPST	2.54 mm	0.1 "	24 VDC	85 °C	-20 ░C	25 mA			Gold	Flush Recessed	Slide (Standard)	4	0.136 "	3.45 mm

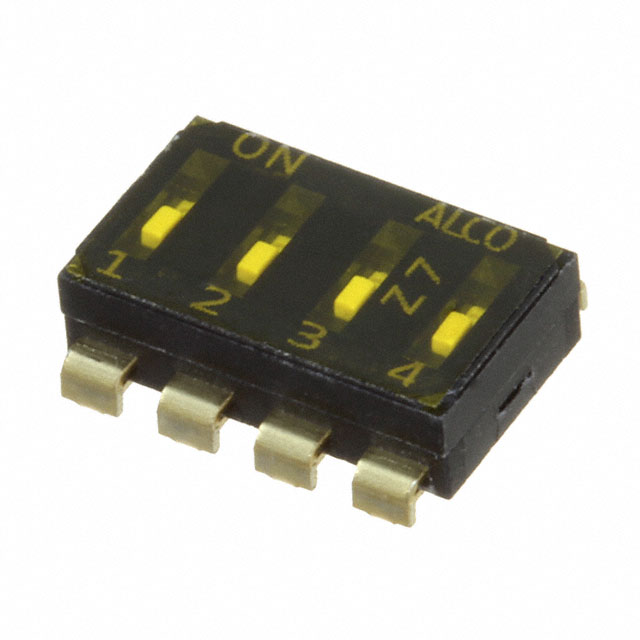

TE Connectivity AMP Connectors EDS04SNRSTU04Q	2000 Cycles	Polyamide (PA) Nylon	2000 Steps	10.06 mm	0.396 "	J Lead	Copper Alloy	Surface Mount	SPST	2.54 mm	0.1 "	24 VDC	85 °C	-20 ░C	25 mA			Gold	Flush Recessed	Slide (Standard)	4	0.136 "	3.45 mm
