9852 Series
Manufacturer: COTO TECHNOLOGY
Beta
⌘K

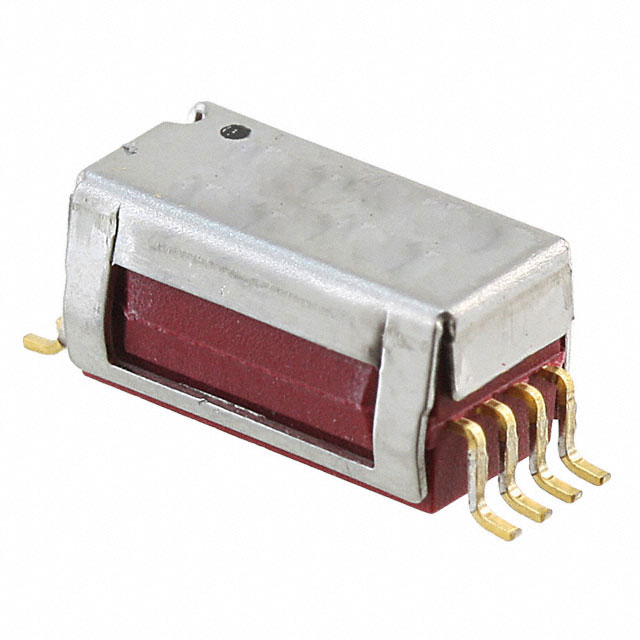

REED RELAY, SPDT, 5 VDC, 9852 SERIES, SURFACE MOUNT, 110 OHM, 100 MA
| Part | Coil Resistance | Operate Time | Coil Type | Must Operate Voltage | Must Release Voltage | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Switching Voltage | Mounting Type | Features | Coil Current | Contact Rating (Current) | Coil Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 COTO TECHNOLOGY | 110 Ohms | 1 ms | Non Latching | 3.8 VDC | 0.4 VDC | SPDT (1 Form C) | 85 °C | -20 ░C | 1 ms | 30 VDC 30 VAC | Surface Mount | Magnetic Shield | 45.5 mA | 100 mA | 5 VDC | J Lead |

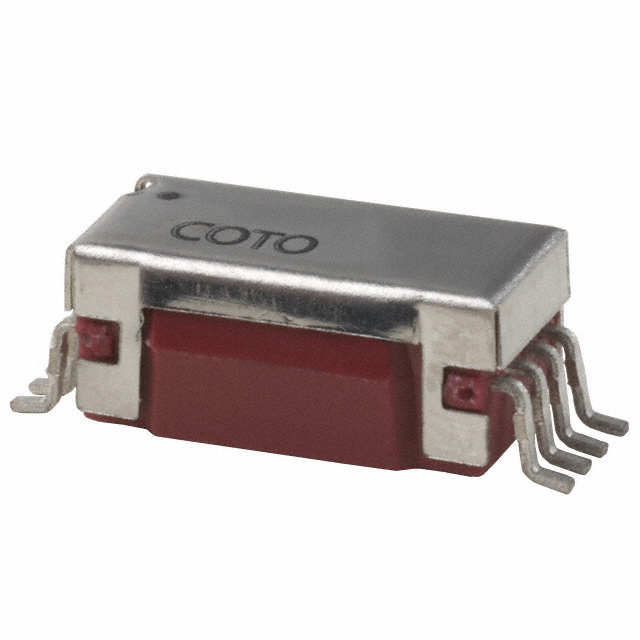

 COTO TECHNOLOGY | 110 Ohms | 1 ms | Non Latching | 3.8 VDC | 0.4 VDC | SPDT (1 Form C) | 85 °C | -20 ░C | 1 ms | 30 VDC 30 VAC | Surface Mount | Magnetic Shield | 45.5 mA | 100 mA | 5 VDC | Gull Wing |
 COTO TECHNOLOGY | 110 Ohms | 1 ms | Non Latching | 3.8 VDC | 0.4 VDC | SPDT (1 Form C) | 85 °C | -20 ░C | 1 ms | 30 VDC 30 VAC | Surface Mount | Magnetic Shield | 45.5 mA | 100 mA | 5 VDC | Gull Wing |

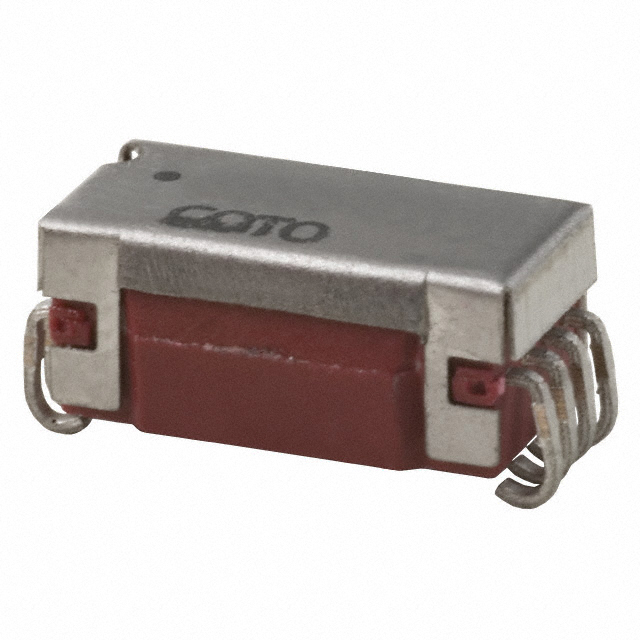

 COTO TECHNOLOGY | 110 Ohms | 1 ms | Non Latching | 3.8 VDC | 0.4 VDC | SPDT (1 Form C) | 85 °C | -20 ░C | 1 ms | 30 VDC 30 VAC | Surface Mount | Magnetic Shield | 45.5 mA | 100 mA | 5 VDC | J Lead |
