TFLP Series
Manufacturer: OptiFuse
Beta
⌘K

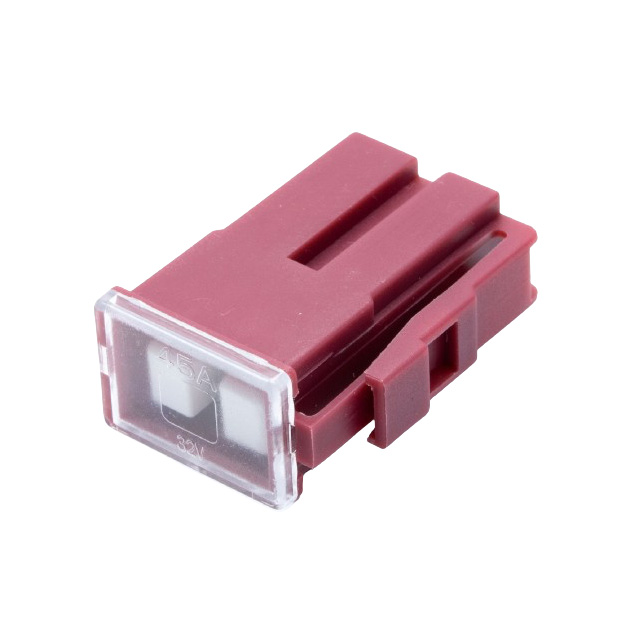

FUSE AUTO 45A 32VDC AUTO LINK
| Part | Approval Agency | Color | Current Rating (Amps) | Package / Case | Response Time | Mounting Type | Voltage Rating - DC | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Fuse Type | Breaking Capacity @ Rated Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OptiFuse | ISO SAE | Red | 45 A | Auto Link | Fast Blow | Requires Holder | 32 V | 23 mm | 0.906 in | 15.8 mm | 38.8 mm | 0.622 in | 1.528 in | Automotive | 1 kA |
 OptiFuse | ISO SAE | Gray | Auto Link | Fast Blow | Requires Holder | 32 V | 23 mm | 0.906 in | 15.8 mm | 38.8 mm | 0.622 in | 1.528 in | Automotive | 1 kA |
