171089 Series

EXTreme Ten60Power Vertical Receptacle with Guides, 4 Split Power Circuits, 30 Signal Circuits, 4 Split Power Circuits, Press Fit Tail

Manufacturer: Molex

Catalog

EXTreme Ten60Power Vertical Receptacle with Guides, 4 Split Power Circuits, 30 Signal Circuits, 4 Split Power Circuits, Press Fit Tail

Part	Voltage Rating	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Features	Color	Mounting Type	Current Rating (Amps)	Connector Style	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions	Connector Type	Number of Positions	Contact Layout, Typical	Number of Rows
Molex 1710898418	600 V	3	30	UL94 V-0	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	All	0.76 Ám	30 Áin	Gold	33	Blade Sockets Female Sockets Receptacle
Molex 1710898421	600 V	2	15	UL94 V-0	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	All	0.76 Ám	30 Áin	Gold		Blade Sockets Female Sockets Receptacle	16

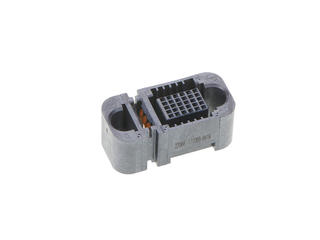

Molex 1710898416	600 V	1	30	UL94 V-0	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	All	0.76 Ám	30 Áin	Gold	31	Blade Sockets Female Sockets Receptacle
Molex 1710898419	600 V	4	30	UL94 V-0	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	All	0.76 Ám	30 Áin	Gold	34	Blade Sockets Female Sockets Receptacle
Molex 1710898426	600 V	2	30	UL94 V-0	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	All	0.76 Ám	30 Áin	Gold	31	Blade Sockets Female Sockets Receptacle

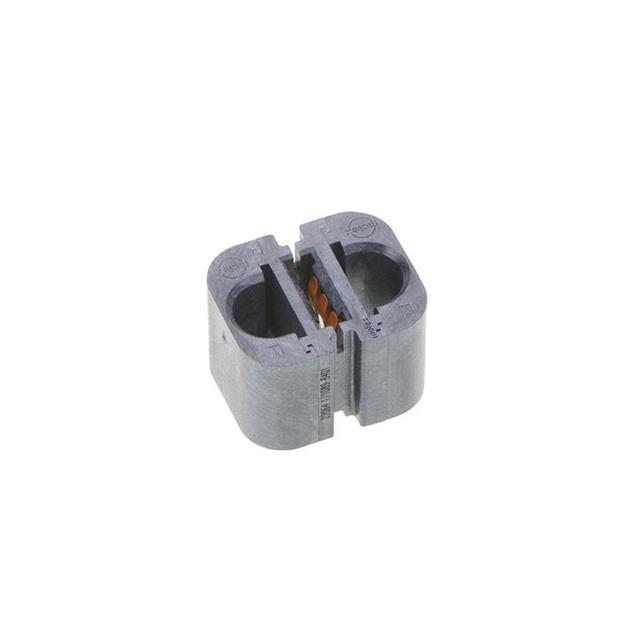

Molex 1710898401	600 V			UL94 V-0	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	Black	Through Hole Right Angle	30 A	EXTreme Ten60Power	All	0.76 Ám	30 Áin	Gold	1	Receptacle Female Blade Sockets		1 Power	1
Molex 1710898413	600 V	3	15	UL94 V-0	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	Black	Through Hole Right Angle	2.5 A 30 A	EXTreme Ten60Power	All	0.76 Ám	30 Áin	Gold	18	Blade Sockets Female Sockets Receptacle
Molex 1710898402	600 V			UL94 V-0	-40 °C	105 ░C	Press-Fit	Board Guide Mating Guide	Black	Through Hole Right Angle	30 A	EXTreme Ten60Power	All	0.76 Ám	30 Áin	Gold	2	Receptacle Female Blade Sockets		2 Power	1
