BTM7750 Series
Manufacturer: INFINEON
Beta
⌘K
IC HALF BRIDGE DRIVER TO263-15
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Technology | Supplier Device Package | Output Configuration | Package / Case | Load Type | Mounting Type | Current - Peak Output | Features | Interface | Fault Protection | Voltage - Supply [Max] | Voltage - Supply [Min] | Voltage - Load [Min] | Voltage - Load [Max] | Applications | Rds On (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

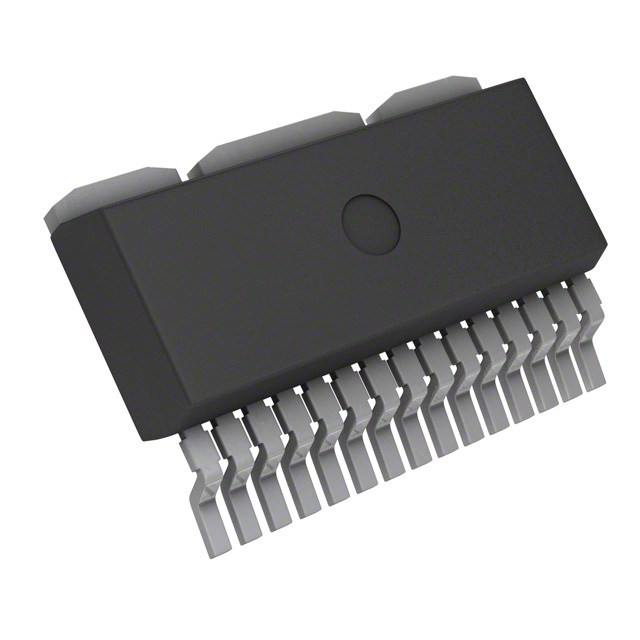

 INFINEON | -40 °C | 110 °C | DMOS | PG-TO263-15-1 | Half Bridge (2) | TO-263-18 (15 Leads + 3 Tabs) | Inductive | Surface Mount | 12 A | Status Flag | Logic | Over Temperature Short Circuit UVLO | 42 V | 1.8 V | 1.8 V | 42 V | DC Motors General Purpose | 45 mOhm 70 mOhm |
