1586000 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HOUSING PL 22 POS 4.2MM CRIMP ST CABLE MOUNT NATURAL BAG
| Part | Note | Number of Positions | Mounting Type | Number of Rows [custom] | Insulation Material | Contact Termination | Fastening Type | Row Spacing | Row Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Color | Contact Type | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

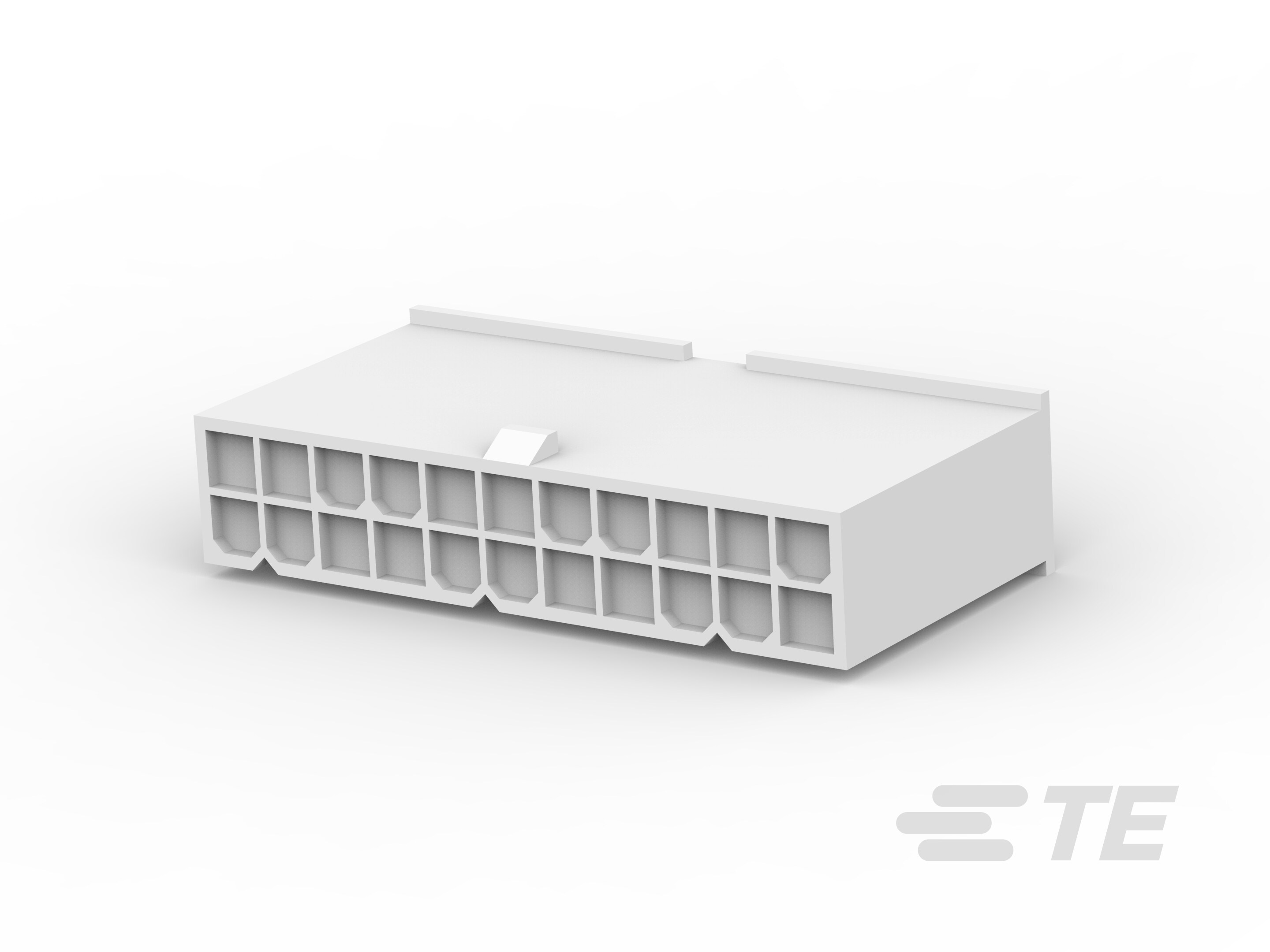

 TE Connectivity AMP Connectors | Contacts Not Included | 22 | Free Hanging (In-Line) | 2 | Nylon Polyamide (PA) | Crimp | Locking Ramp | 0.165 in | 4.2 mm | -40 C | 105 ░C | Plug | Natural | Male Pin | 0.165 in | 4.2 mm |

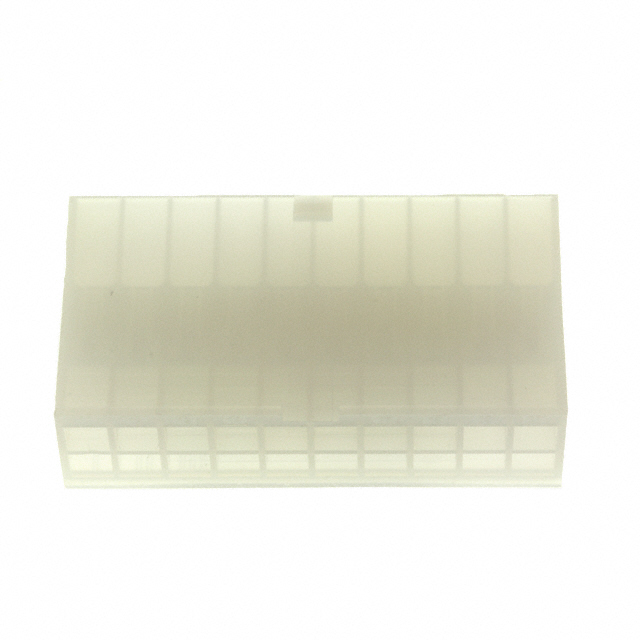

 TE Connectivity AMP Connectors | Contacts Not Included | 20 | Free Hanging (In-Line) | 2 | Nylon Polyamide (PA) | Crimp | Locking Ramp | 0.165 in | 4.2 mm | -40 C | 105 ░C | Plug | Natural | Male Pin | 0.165 in | 4.2 mm |
 TE Connectivity AMP Connectors | Contacts Not Included | 6 | Free Hanging (In-Line) | 2 | Nylon Polyamide (PA) | Crimp | Locking Ramp | 0.165 in | 4.2 mm | -40 C | 105 ░C | Plug | Natural | Male Pin | 0.165 in | 4.2 mm |
