BTS7122 Series
Manufacturer: INFINEON
Beta
⌘K
POWER LOAD SW, HIGH SIDE, -40 - 150DEG C ROHS COMPLIANT: YES
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Ratio - Input:Output | Output Type | Switch Type | Output Configuration | Number of Outputs | Mounting Type | Interface | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Input Type | Features | Grade | Qualification | Rds On (Typ) | Fault Protection | Supplier Device Package | Package / Case | Current - Output (Max) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

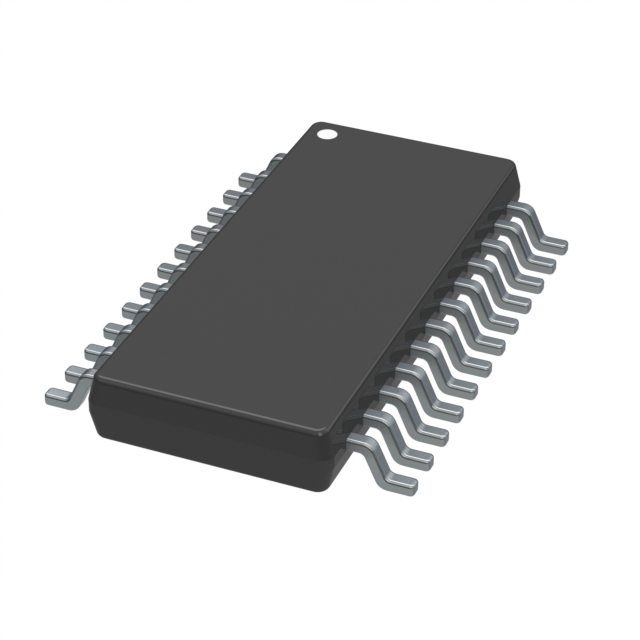

 INFINEON | 28 V | 6 V | 1:4 | N-Channel | Relay Solenoid Driver | High Side | 4 | Surface Mount | PWM SPI | 5.5 V | 3 V | Non-Inverting | Load Discharge PWM Input Slew Rate Controlled Status Flag | Automotive | AEC-Q100 | 9.5 mOhm 22.5 mOhm | Current Limiting (Fixed) Over Load Over Temperature Over Voltage Reverse Battery Short Circuit UVLO | PG-TSDSO-24-32 | 24-TSSOP (0.154" 3.90mm Width) Exposed Pad | 3 A 5 A | -40 °C | 150 °C |
