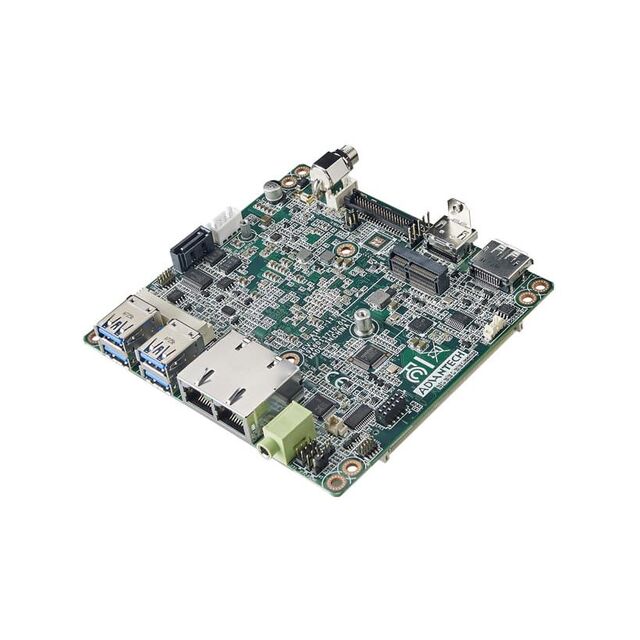

AIMB-U117 Series
Manufacturer: Advantech Corporation
Beta
⌘K
SBC 1.3GHZ 2 CORE 8GB/32GB RAM
| Part | Watchdog Timer | Ethernet | Ethernet | Operating Temperature [Min] | Operating Temperature [Max] | Speed | RAM Capacity/Installed | Digital I/O Lines | Video Outputs | Expansion Site/Bus | USB | Storage Interface | Form Factor | Cooling Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Number of Cores | Power (Watts) | Core Processor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advantech Corporation | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | -20 ░C | 70 °C | 1.3 GHz | 8 GB 32 GB | 8 | DP++ eDP HDMI LVDS | M.2 mPCIe mSATA | USB 3.0 (4) | eMMC M.2 mSATA SATA 3.0 (1) | UTX | Heat Sink | 4.6 " | 111.76 mm | 4.4 " | 116.84 mm | 2 | |||
 Advantech Corporation | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | -20 ░C | 70 °C | 1.3 GHz | 8 GB 32 GB | 8 | DP++ eDP HDMI LVDS | M.2 mPCIe mSATA | USB 3.0 (4) | eMMC M.2 mSATA SATA 3.0 (1) | UTX | Heat Sink | 4.6 " | 111.76 mm | 4.4 " | 116.84 mm | 2 | |||
Advantech Corporation | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | -20 ░C | 70 °C | 1.3 GHz | 8 GB 32 GB | 8 | DP++ eDP HDMI LVDS | M.2 mPCIe mSATA | USB 3.0 (4) | eMMC M.2 mSATA SATA 3.0 (1) | UTX | Heat Sink | 4.6 " | 111.76 mm | 4.4 " | 116.84 mm | 2 | |||
Advantech Corporation | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | 0 °C | 60 °C | 1.6 GHz | 8 GB 32 GB | 8 | DP++ eDP HDMI LVDS | M.2 mPCIe mSATA | USB 3.0 (4) | eMMC M.2 mSATA SATA 3.0 (1) | UTX | Heat Sink | 4.6 " | 111.76 mm | 4.4 " | 116.84 mm | 4 | 7.3 W | Intel Atom x7-E3950 | |
Advantech Corporation | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | -20 ░C | 70 °C | 1.3 GHz | 0 GB 8 GB | 8 | DP++ eDP HDMI LVDS | M.2 mPCIe mSATA | USB 3.0 (4) | eMMC M.2 mSATA SATA 3.0 (1) | UTX | Heat Sink | 4.6 " | 111.76 mm | 4.4 " | 116.84 mm | 2 | |||
Advantech Corporation | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | -20 ░C | 70 °C | 1.3 GHz | 0 GB 8 GB | 8 | DP++ eDP HDMI LVDS | M.2 mPCIe mSATA | USB 3.0 (4) | eMMC M.2 mSATA SATA 3.0 (1) | UTX | Heat Sink | 4.6 " | 111.76 mm | 4.4 " | 116.84 mm | 2 | |||
Advantech Corporation | 10 Mbps 100 Mbps 1000 Mbps | GbE RJ45 | -20 ░C | 70 °C | 1.3 GHz | 0 GB 8 GB | 8 | DP++ eDP HDMI LVDS | M.2 mPCIe mSATA | USB 3.0 (4) | eMMC M.2 mSATA SATA 3.0 (1) | UTX | Heat Sink | 4.6 " | 111.76 mm | 4.4 " | 116.84 mm | 2 |
