JL05-6A2 Series

Catalog

CONN PLG HSG MALE 17POS INLINE

Part	Housing Color	Insert Material	Contact Size	Contact Type	Shell Material	Shielding	Fastening Type	Type	Connector Type	Mounting Type	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Number of Positions	Note	Orientation	Ingress Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Material Flammability Rating	Shell Finish	Applications	Contact Material	Termination	Color	Contact Finish - Mating	Primary Material	Cable Opening	Cable Opening	Current Rating (Amps)	Shell Size - Insert	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Size [x]	Contact Size [custom]

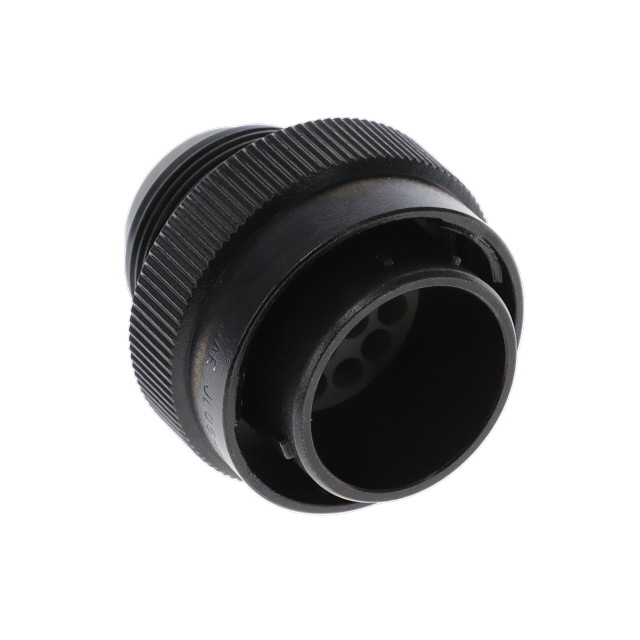

JAE Electronics JL05-6A20-29PC-F0-R	Black	Synthetic Resin	16	Crimp	Aluminum	Unshielded	Bayonet Lock	For Male Pins	Plug Housing	Free Hanging (In-Line)	20	29	17	Contacts Not Included	N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut	-55 C	125 °C	Circular	UL94 V-0	Zinc
JAE Electronics JL05-6A22-14P-R		Synthetic Resin			Aluminum Alloy		Bayonet Lock		Plug Male Pins	Free Hanging (In-Line)			19		N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut Ground Lug	-55 C	125 °C			Zinc	Industrial Marine Telecommunications	Copper Alloy	Solder	Black	Silver	Metal	1.165 in	29.6 mm	13 A	22-14
JAE Electronics JL05-6A22-14PC-F0-R	Black	Synthetic Resin	16	Crimp	Aluminum	Unshielded	Bayonet Lock	For Male Pins	Plug Housing	Free Hanging (In-Line)			19	Contacts Not Included	N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut	-55 C	125 °C	Circular	UL94 V-0	Zinc										22-14
JAE Electronics JL05-6A20-29SC-F0-R	Black	Synthetic Resin	16	Crimp	Aluminum	Unshielded	Bayonet Lock	For Female Sockets	Plug Housing	Free Hanging (In-Line)	20	29	17	Contacts Not Included	N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut	-55 C	125 °C	Circular	UL94 V-0	Zinc
JAE Electronics JL05-6A20-15SC-F0-R	Black	Synthetic Resin	12	Crimp	Aluminum	Unshielded	Bayonet Lock	For Female Sockets	Plug Housing	Free Hanging (In-Line)			7	Contacts Not Included	N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut	-55 C	125 °C	Circular	UL94 V-0	Zinc											15	20
JAE Electronics JL05-6A22-23PC-F0-R	Black	Synthetic Resin	12	Crimp	Aluminum	Unshielded	Bayonet Lock	For Male Pins	Plug Housing	Free Hanging (In-Line)			8	Contacts Not Included	N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut	-55 C	125 °C	Circular	UL94 V-0	Zinc											22	23
JAE Electronics JL05-6A24-11SC-F0-R	Black	Synthetic Resin		Crimp	Aluminum	Unshielded	Bayonet Lock	For Female Sockets	Plug Housing	Free Hanging (In-Line)			9	Contacts Not Included	N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut	-55 C	125 °C	Circular	UL94 V-0	Zinc										24-11			8 12	3 6

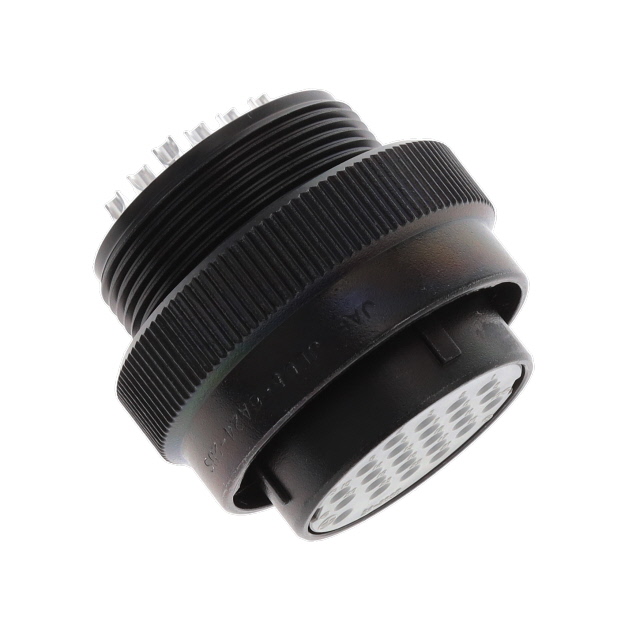

JAE Electronics JL05-6A24-28S-R		Synthetic Resin			Aluminum Alloy		Bayonet Lock		Plug Female Sockets	Free Hanging (In-Line)			24		N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut Ground Lug	-55 C	125 °C			Zinc	Industrial Marine Telecommunications	Copper Alloy	Solder	Black	Silver	Metal	1.291 in	32.8 mm	13 A		24	28
JAE Electronics JL05-6A20-30ASC-F0-R	Black	Synthetic Resin	20	Crimp	Aluminum	Unshielded	Bayonet Lock	For Female Sockets	Plug Housing	Free Hanging (In-Line)			30	Contacts Not Included	N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut	-55 C	125 °C	Circular	UL94 V-0	Zinc											20 A	30 A

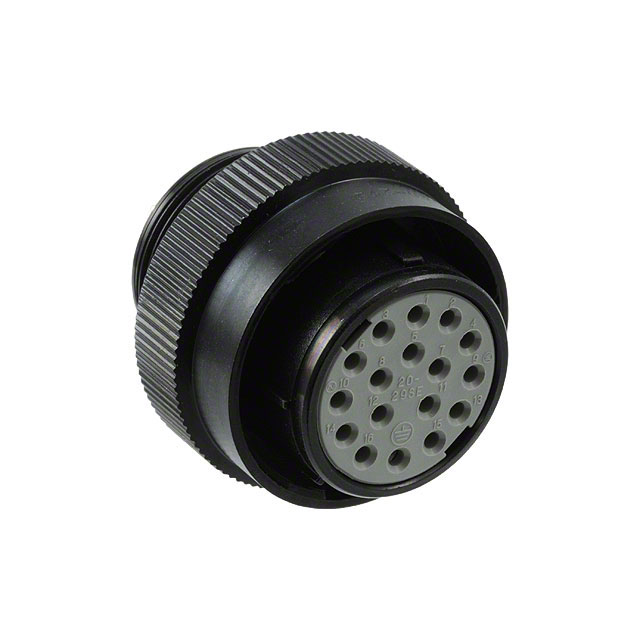

JAE Electronics JL05-6A20-29S-R		Synthetic Resin			Aluminum Alloy		Bayonet Lock		Plug Female Sockets	Free Hanging (In-Line)	20	29	17		N (Normal)	IP67 - Dust Tight Waterproof	Coupling Nut Ground Lug	-55 C	125 °C			Zinc	Industrial Marine Telecommunications	Copper Alloy	Solder	Black	Silver	Metal	1.059 in	26.9 mm	13 A
