Schaffner FN751X Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

EMI FEEDTHROUGH FILTERS 200A TERMINAL 8NM AC FEED THRU FILTERS

Part	Capacitance	Ratings	Package / Case	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR) (Max)	Voltage - Rated	Voltage - Rated	Mounting Type	Current	Thread Size
TE Connectivity AMP Connectors FN7511-200-M10	0.22 µF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	5.118 in	130 mm	32 mm	1.26 in	0.16 mOhm	1 kV	1000 V	Bolt Mount	200 A
TE Connectivity AMP Connectors FN7510-32-M4	0.0047 µF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	2.48 in	63 mm	21.95 mm	0.864 in	0.52 mOhm	1 kV	1000 V		32 A	M12x2
TE Connectivity AMP Connectors FN7511-100-M8	100000 pF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	4.449 "	113 mm	32 mm	1.26 in	0.23 mOhm	1 kV	1000 V		100 A	M20x1

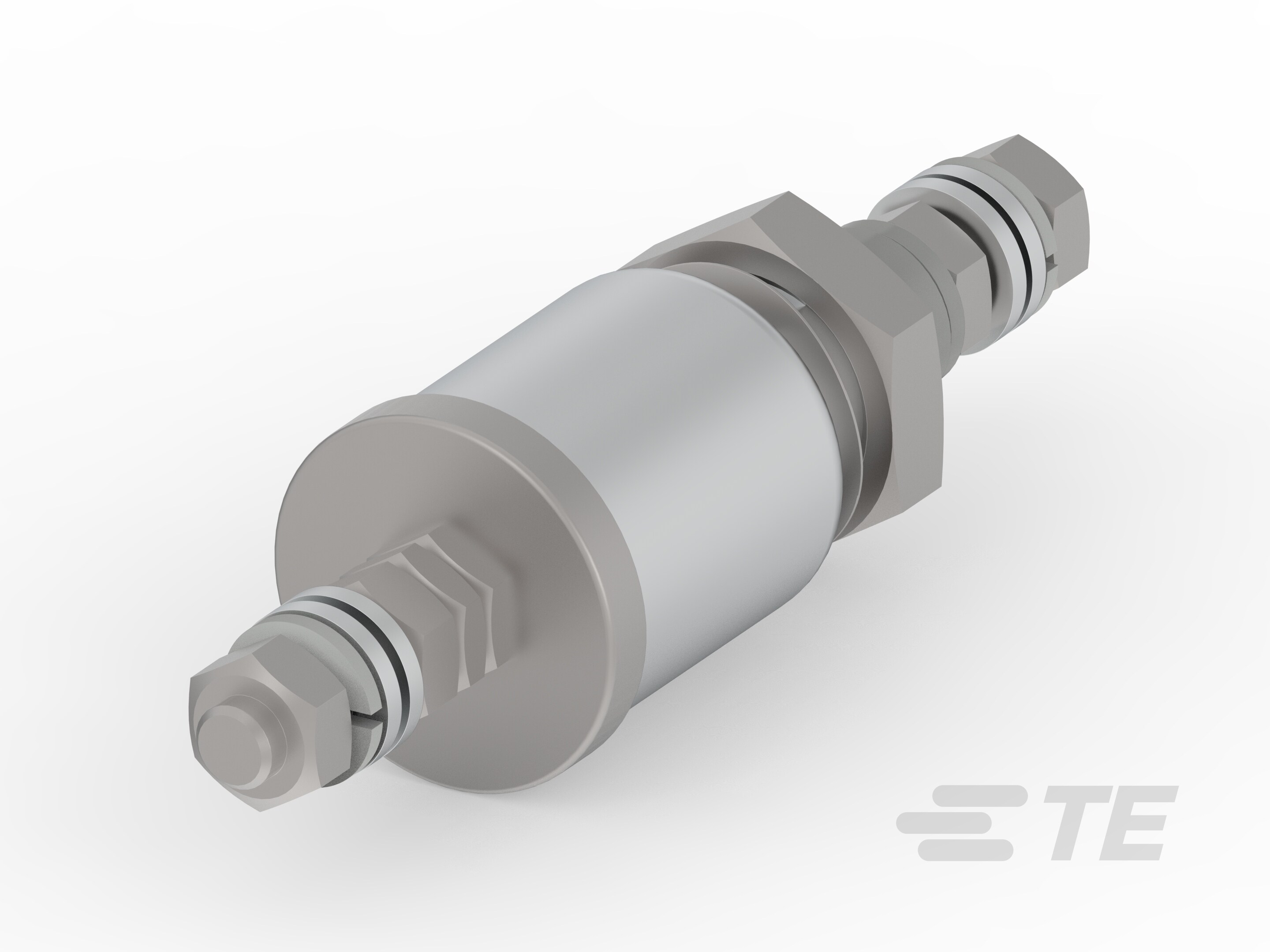

TE Connectivity AMP Connectors FN7512-63-M6	100000 pF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	3.78 in	96 mm	25 mm	0.984 "	0.3 mOhm	1 kV	1000 V		63 A	M16x1
TE Connectivity AMP Connectors FN7512-32-M4	0.033 çF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	2.953 "	75 mm	21.95 mm	0.864 in	0.62 mOhm	1 kV	1000 V	Bolt Mount	32 A

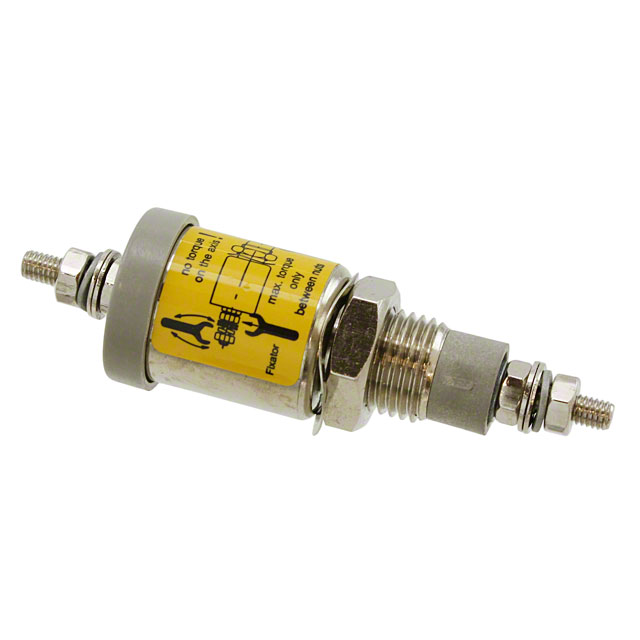

TE Connectivity AMP Connectors FN7511-10-M3	0.0047 µF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	2.244 "	57 mm	16.85 mm	0.663 in	0.8 mOhm	1 kV	1000 V		10 A	M10x1

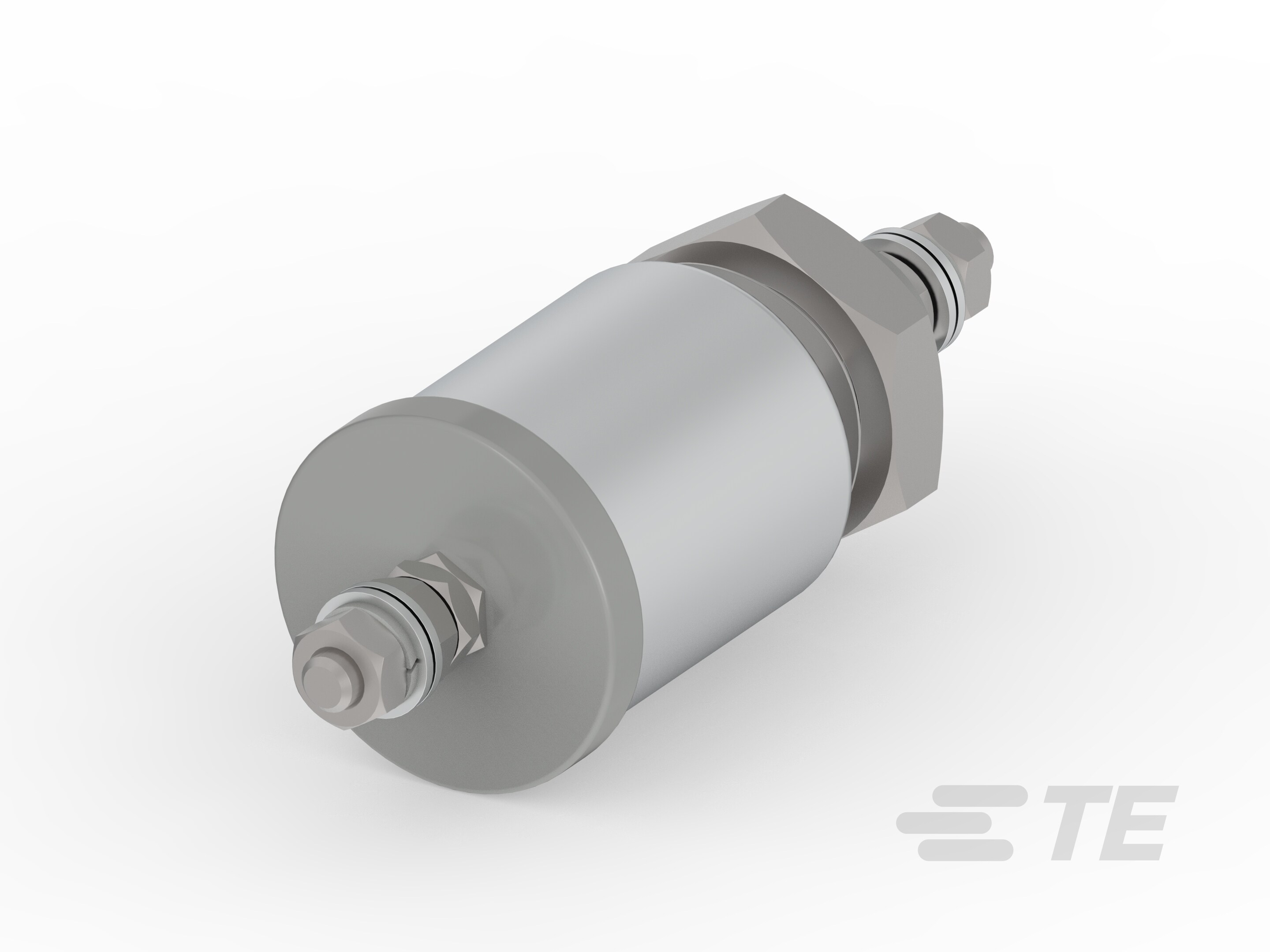

TE Connectivity AMP Connectors FN7513-16-M4	100000 pF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	3.031 "	77 mm	26.95 mm	1.061 "		1 kV	1000 V		16 A	M16x2
TE Connectivity AMP Connectors FN7510-16-M4	0.0047 µF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	2.48 in	63 mm	21.95 mm	0.864 in	0.5 mOhm	1 kV	1000 V		16 A	M12x1
TE Connectivity AMP Connectors FN7512-16-M4		Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	2.953 "	75 mm	21.95 mm	0.864 in	0.62 mOhm	1 kV	1000 V	Bolt Mount	16 A
TE Connectivity AMP Connectors FN7511-10-M3	0.0047 µF	Y2	Axial - Threaded Terminals	20 %	-40 C	100 °C	2.244 "	57 mm	16.85 mm	0.663 in	0.8 mOhm	1 kV	1000 V		10 A	M10x1
