0951-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

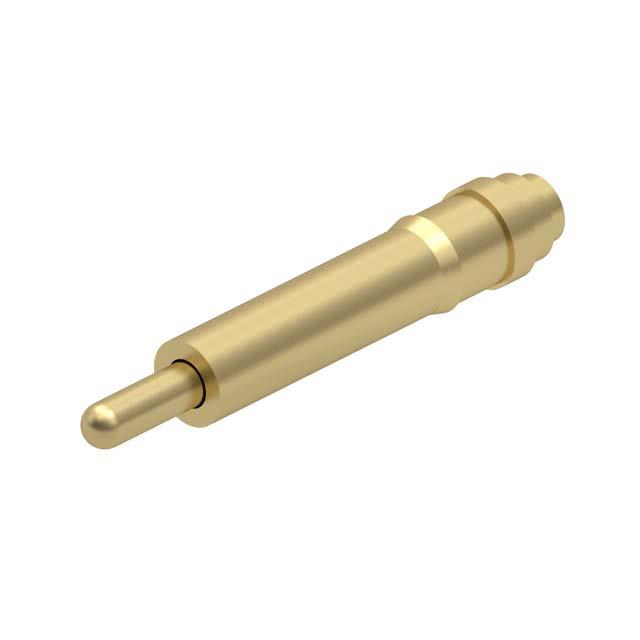

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Minimum Working Height [Min] | Minimum Working Height [Min] | Mating Cycles | Contact Material | Operating Force - Mid Compression | Contact Finish Thickness | Contact Finish Thickness | Maximum Working Height [Max] | Maximum Working Height [Max] | Recommended Working Height | Recommended Working Height | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Sleeve & Plunger (Pogo Pins) | 0.043 in | Circular | 1.09 mm | 0.019 in | 0.48 mm | Gold | 0.197 in | 5 mm | 1000000 | Brass Alloy | 60 gf | 20 µin | 0.51 µm | 0.252 in | 6.4 mm | 0.224 in | 5.7 mm | Surface Mount | 5.2 A |
