19300241 Series

Manufacturer: HARTING

Catalog

HAN 24B-HSM2-M25 SNAP CAP

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Ingress Protection	Size	Style	Housing Material	Lock Location	Connector Type	Housing Finish	Features	Size / Dimension [z]	Size / Dimension [y]
HARTING 19300241206

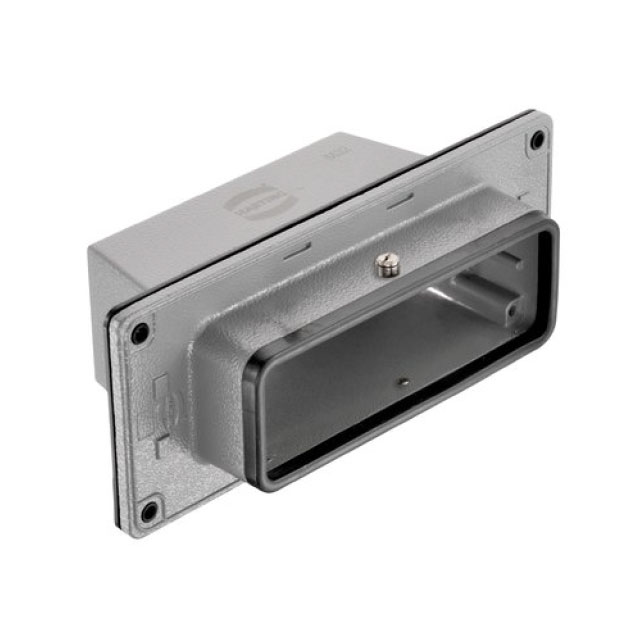

HARTING 19300241141	6.634 "	70.5 mm	168.5 mm	80.4 mm	2.776 in	3.165 in	Gray	125 °C	-40 C	M32	IP65 - Dust Tight Water Resistant	24 B	Top Entry	Aluminum Die Cast	Locking Clip (1) on Base Bottom	Hood - Panel Mount	Powder Coated

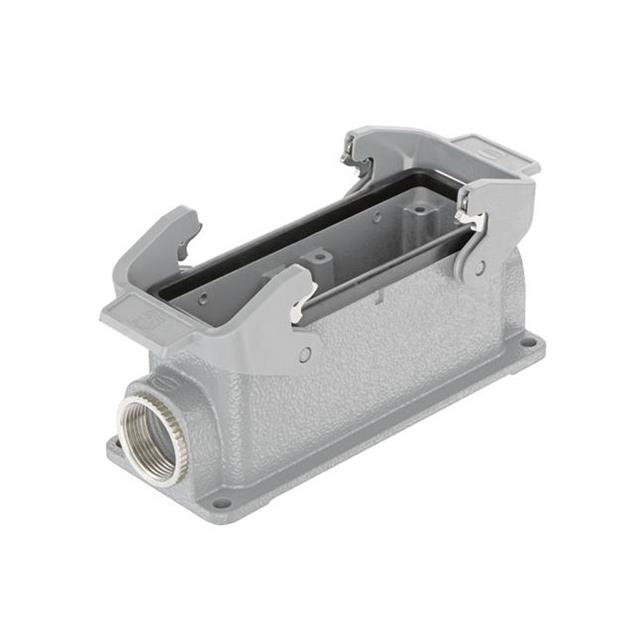

HARTING 19300241215							Gray	125 °C	-40 C		IP65 - Dust Tight Water Resistant	24 B		Aluminum Die Cast		Base - Box Mount	Powder Coated

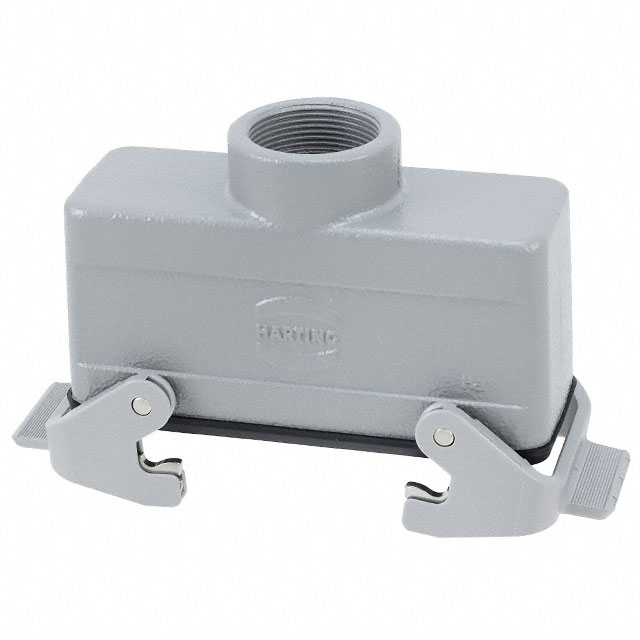

HARTING 19300241732	4.724 in	43 mm	120 mm	57.4 mm	1.693 "	2.26 in	Gray	125 °C	-40 C	M32	IP65 - Dust Tight Water Resistant	24 B	Bottom Entry Top or Bottom Entry	Aluminum Die Cast	Locking Clip (2) on Hood Top	Hood - Coupling	Powder Coated	Cable to Cable
HARTING 19300241142	6.634 "	70.5 mm	168.5 mm	80.4 mm	2.776 in	3.165 in	Gray	125 °C	-40 C		IP65 - Dust Tight Water Resistant	24 B	Top Entry	Aluminum Die Cast	Locking Clip (1) on Base Bottom	Hood - Panel Mount	Powder Coated

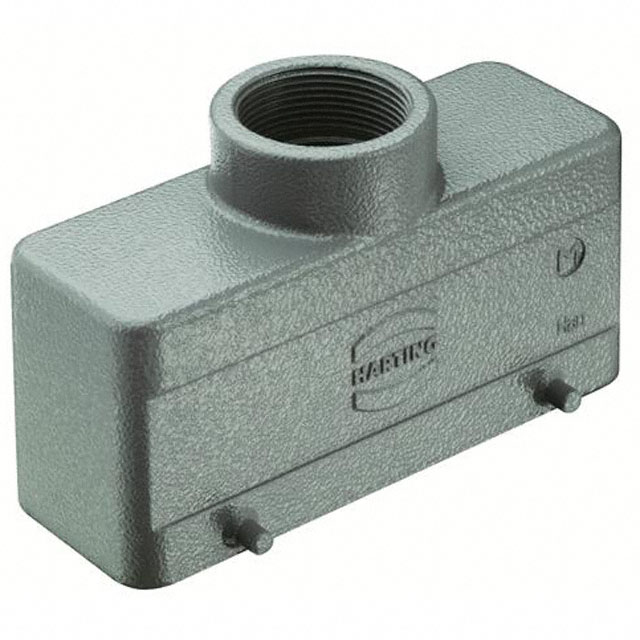

HARTING 19300241422	4.724 in	43 mm	120 mm	71 mm	1.693 "	2.795 "	Gray	125 °C	-40 C	M32	IP65 - Dust Tight Water Resistant	24 B	Top Entry	Aluminum Die Cast	Locking Clip (2) on Base Bottom	Hood	Powder Coated

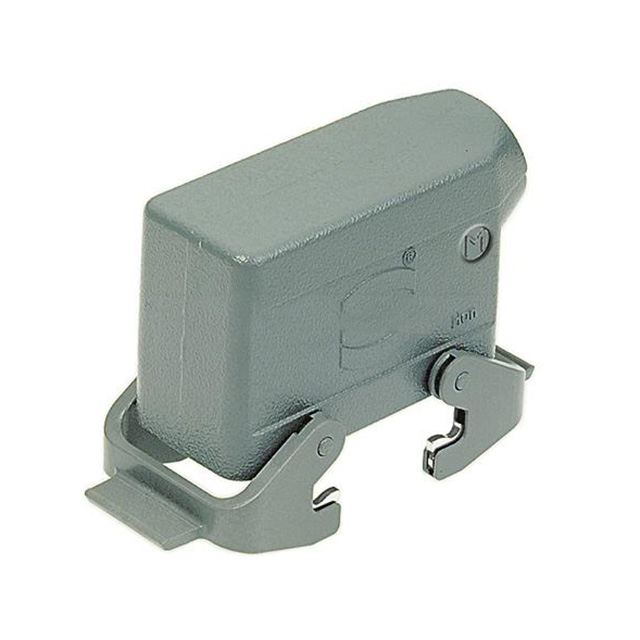

HARTING 19300241531	4.724 in	43 mm	120 mm	62.5 mm	1.693 "	2.461 "	Gray	125 °C	-40 C	M25	IP65 - Dust Tight Water Resistant	24 B	Side Entry	Aluminum Die Cast	Locking Clip (2) on Hood	Hood	Powder Coated
HARTING 19300241296	5.669 in	57 mm	144 mm	56 mm	2.244 "	2.205 "	Gray	125 °C	-40 C	M25	IP65 - Dust Tight Water Resistant	24 B	Side Entry	Aluminum Die Cast	Locking Clip (1) on Base Bottom	Base - Box Mount	Powder Coated

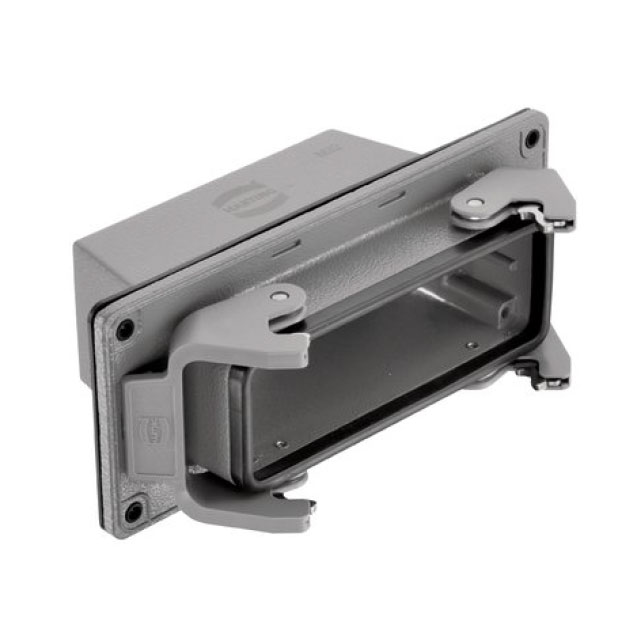

HARTING 19300241121	6.634 "	70.5 mm	168.5 mm	80.4 mm	2.776 in	3.165 in	Gray	125 °C	-40 C	M32	IP65 - Dust Tight Water Resistant	24 B	Top Entry	Aluminum Die Cast	Locking Clip (2) on Hood	Hood - Panel Mount	Powder Coated

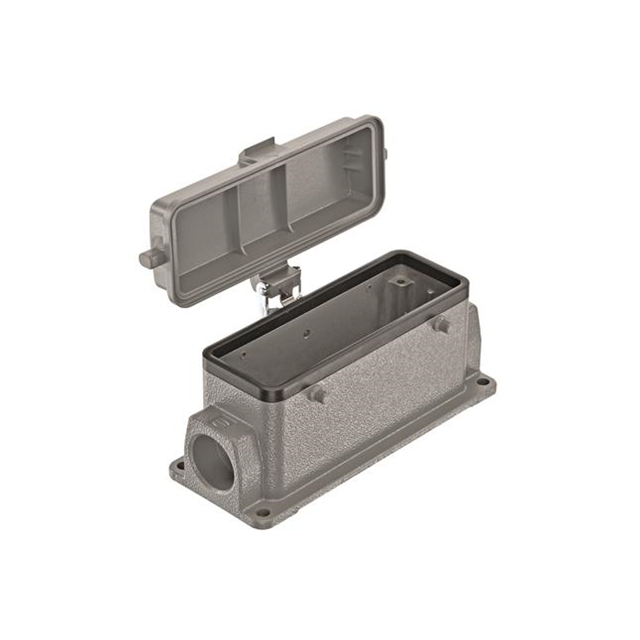

HARTING 19300241226	5.669 in		144 mm		2.244 "	2.197 in	Gray	125 °C	-40 C	M25	IP65 - Dust Tight Water Resistant	24 B	Side Entry	Aluminum Die Cast	Locking Clip (2) on Hood	Base - Box Mount	Powder Coated	Cover	55.8 mm	57 mm
