299-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 16POS GOLD

Part	Current Rating (Amps)	Termination Post Length [x]	Termination Post Length [x]	Contact Finish - Post	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Type	Type	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Contact Finish - Mating	Termination	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Contact Material - Post	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Type [custom]	Type [custom]

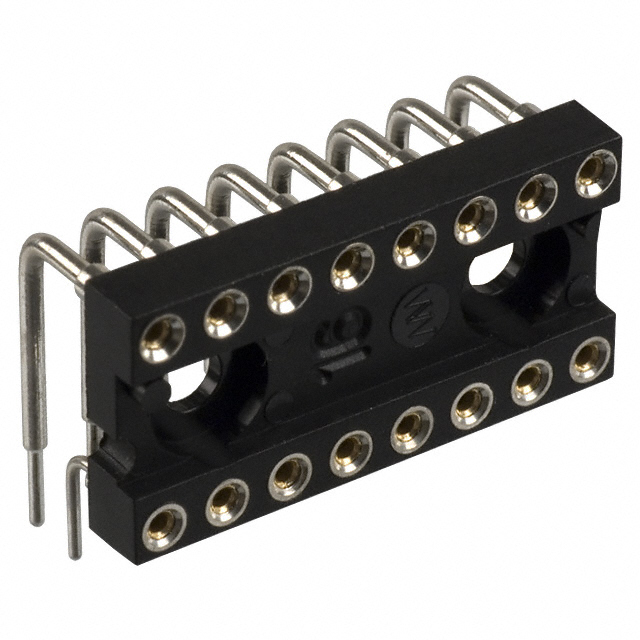

Mill-Max Manufacturing Corp. 299-43-316-11-001000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame	7.62 mm	0.3 in	DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder	2	16	8	Brass Alloy	0.1 "	2.54 mm

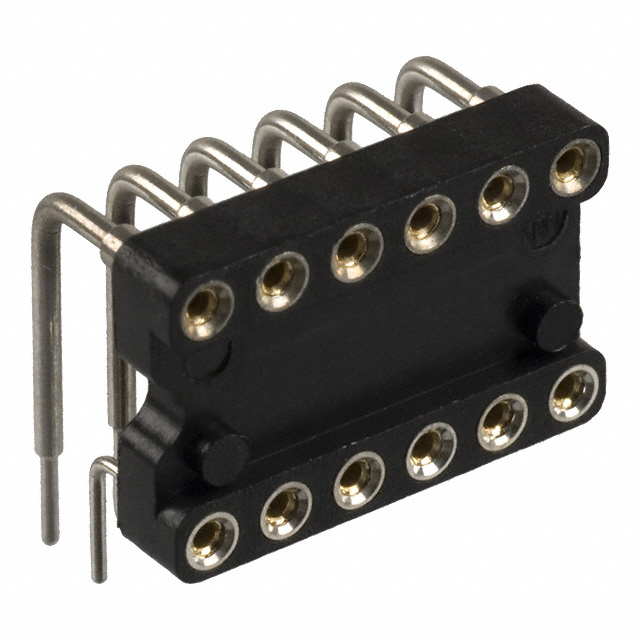

Mill-Max Manufacturing Corp. 299-43-312-11-001000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame	7.62 mm	0.3 in	DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		12		Brass Alloy	0.1 "	2.54 mm
Mill-Max Manufacturing Corp. 299-43-306-10-001000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame	7.62 mm	0.3 in	DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		6		Brass Alloy	0.1 "	2.54 mm	3 positions or pins	2
Mill-Max Manufacturing Corp. 299-43-640-10-002000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame			DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		40		Brass Alloy	0.1 "	2.54 mm			15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 299-43-324-10-001000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame	7.62 mm	0.3 in	DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		24		Brass Alloy	0.1 "	2.54 mm	2	12

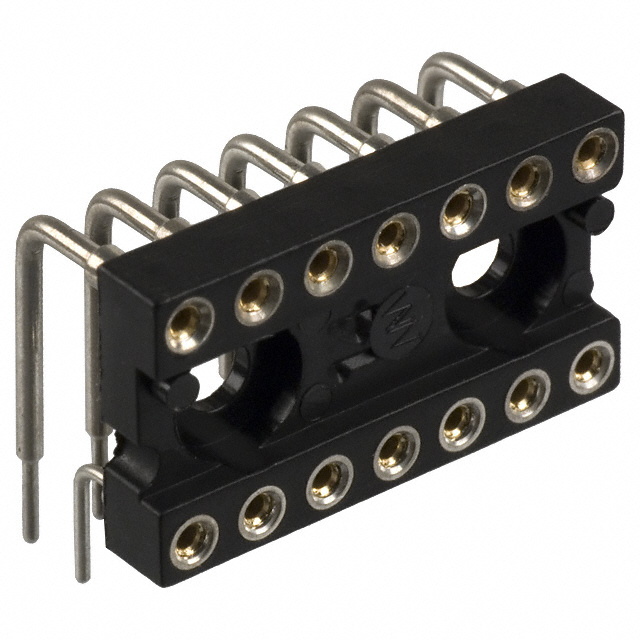

Mill-Max Manufacturing Corp. 299-43-314-11-001000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame	7.62 mm	0.3 in	DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		14		Brass Alloy	0.1 "	2.54 mm

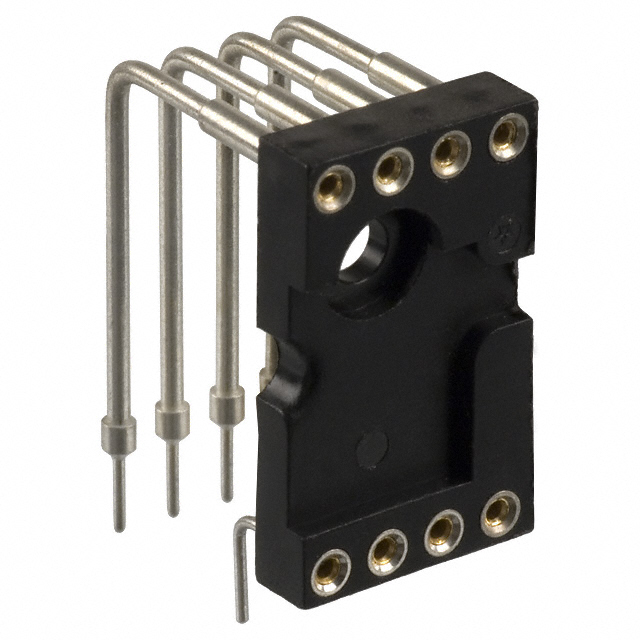

Mill-Max Manufacturing Corp. 299-43-608-10-002000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame			DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		8		Brass Alloy	0.1 "	2.54 mm	4	2	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 299-43-610-10-002000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame			DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		10		Brass Alloy	0.1 "	2.54 mm	5	2	15.24 mm	0.6 in

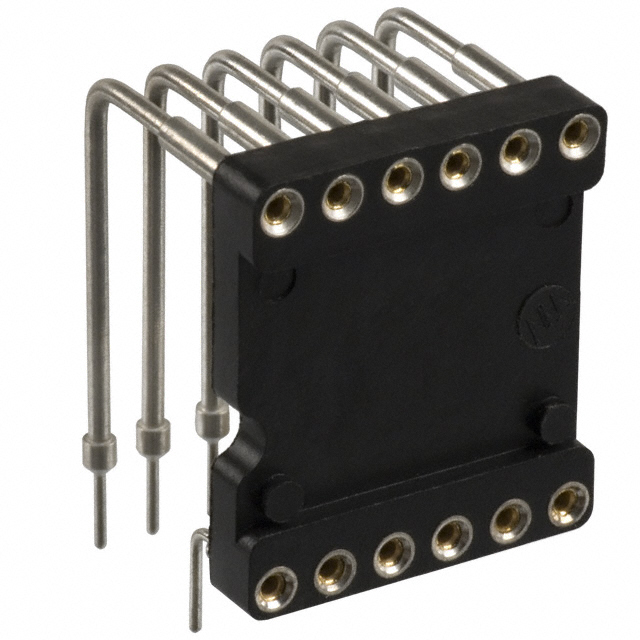

Mill-Max Manufacturing Corp. 299-43-612-10-002000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame			DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		12		Brass Alloy	0.1 "	2.54 mm			15.24 mm	0.6 in

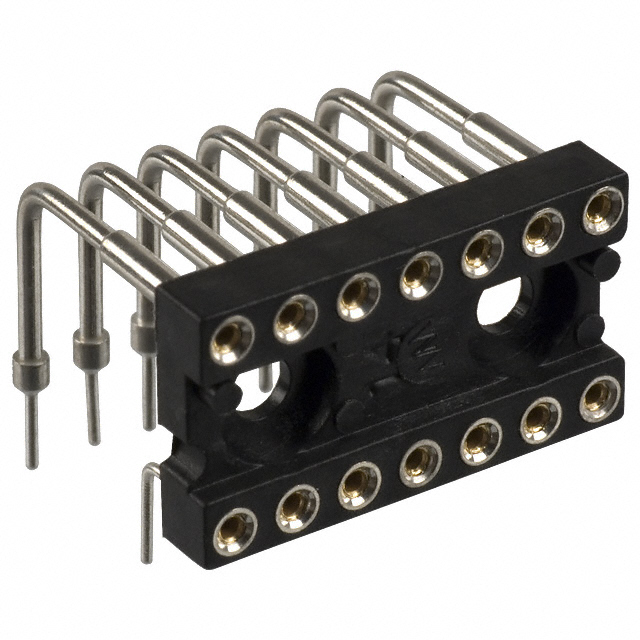

Mill-Max Manufacturing Corp. 299-43-314-10-001000	3 A	3.2 mm	0.126 in	Tin	0.1 in	2.54 mm	200 µin	5.08 µm	Closed Frame	7.62 mm	0.3 in	DIP	0.76 Ám	30 Áin	Beryllium Copper	-55 C	125 °C	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	Solder		14		Brass Alloy	0.1 "	2.54 mm
