TUHCH-88B Series

Catalog

BUZZER 33.02MM PNL MNT

Part	Driver Circuitry	Operating Mode	Frequency	Termination	Termination	Termination	Approval Agency	Mounting Type	Sound Pressure Level (SPL)	Ingress Protection	Current - Supply [Max]	Current - Supply [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Input Type	Voltage Range [Max]	Voltage Range [Min]	Port Location	Size / Dimension [diameter]	Size / Dimension [diameter]

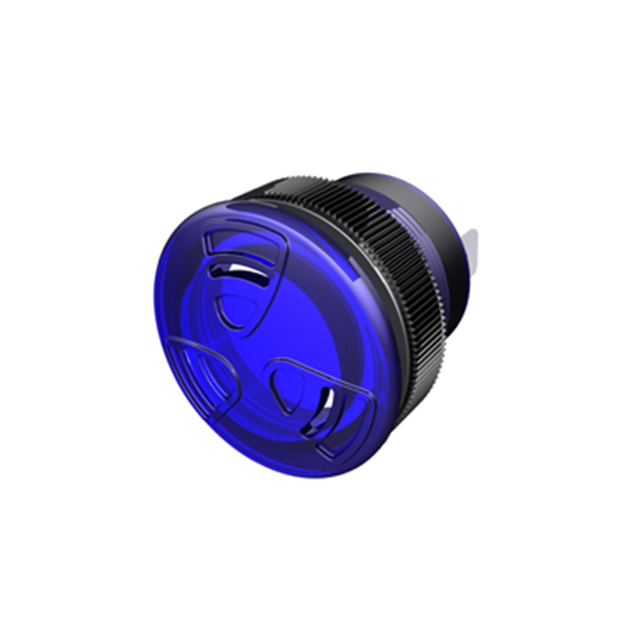

Floyd Bell Inc TUHCH-88B-930-Q(F)	Indicator Internally Driven	Chime	3 kHz	Quick Connect Tab	0.25 "	6.35 mm	UL UR	Panel Mount	103 dB	IP68 - Dust Tight Waterproof	125 mA	65 mA	29.97 mm	1.18 in	DC	30 V	9 V	Top	1.3 in	33.02 mm
Floyd Bell Inc TUHCH-88B-930-Q(M)	Indicator Internally Driven	Chime	3 kHz	Quick Connect Tab	0.25 "	6.35 mm	UL UR	Panel Mount	103 dB	IP68 - Dust Tight Waterproof	125 mA	65 mA	29.97 mm	1.18 in	DC	30 V	9 V	Top	1.3 in	33.02 mm
