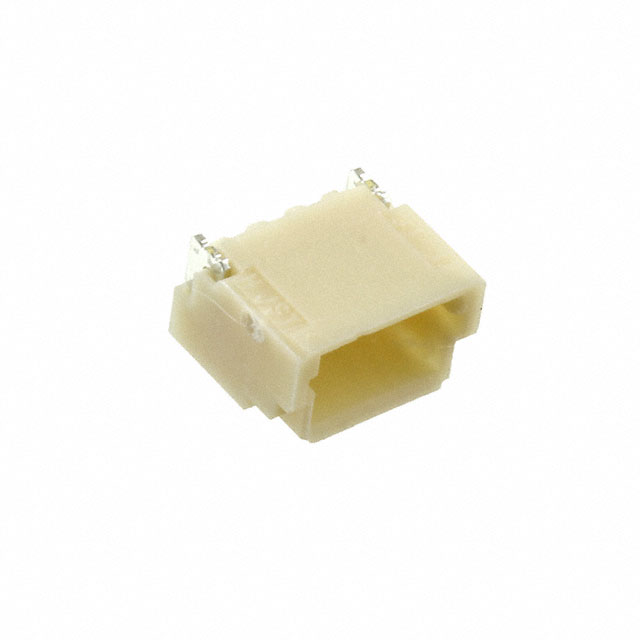

BM03B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD 3POS 1MM
| Part | Mated Stacking Heights | Contact Shape | Mounting Type | Number of Rows | Insulation Material | Number of Positions Loaded | Fastening Type | Material Flammability Rating | Features | Contact Type | Contact Material | Termination | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Style | Connector Type | Insulation Color | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 4.9 mm | Square | Surface Mount | 1 | Nylon Polyamide (PA) | All | Push-Pull | UL94 V-0 | Pick and Place Solder Retention | Male Pin | Copper Alloy | Solder | Shrouded - 4 Wall | 85 °C | -25 °C | 4.25 mm | 0.167 " | 1 mm | 0.039 in | Tin | Board to Cable/Wire | Header | Natural | 50 V |
 JST Sales America Inc. | 4.9 mm | Square | Surface Mount | 1 | Nylon Polyamide (PA) | All | Push-Pull | UL94 V-0 | Solder Retention | Male Pin | Copper Alloy | Solder | Shrouded - 4 Wall | 85 °C | -25 °C | 4.25 mm | 0.167 " | 1 mm | 0.039 in | Tin | Board to Cable/Wire | Header | Natural | 50 V |
